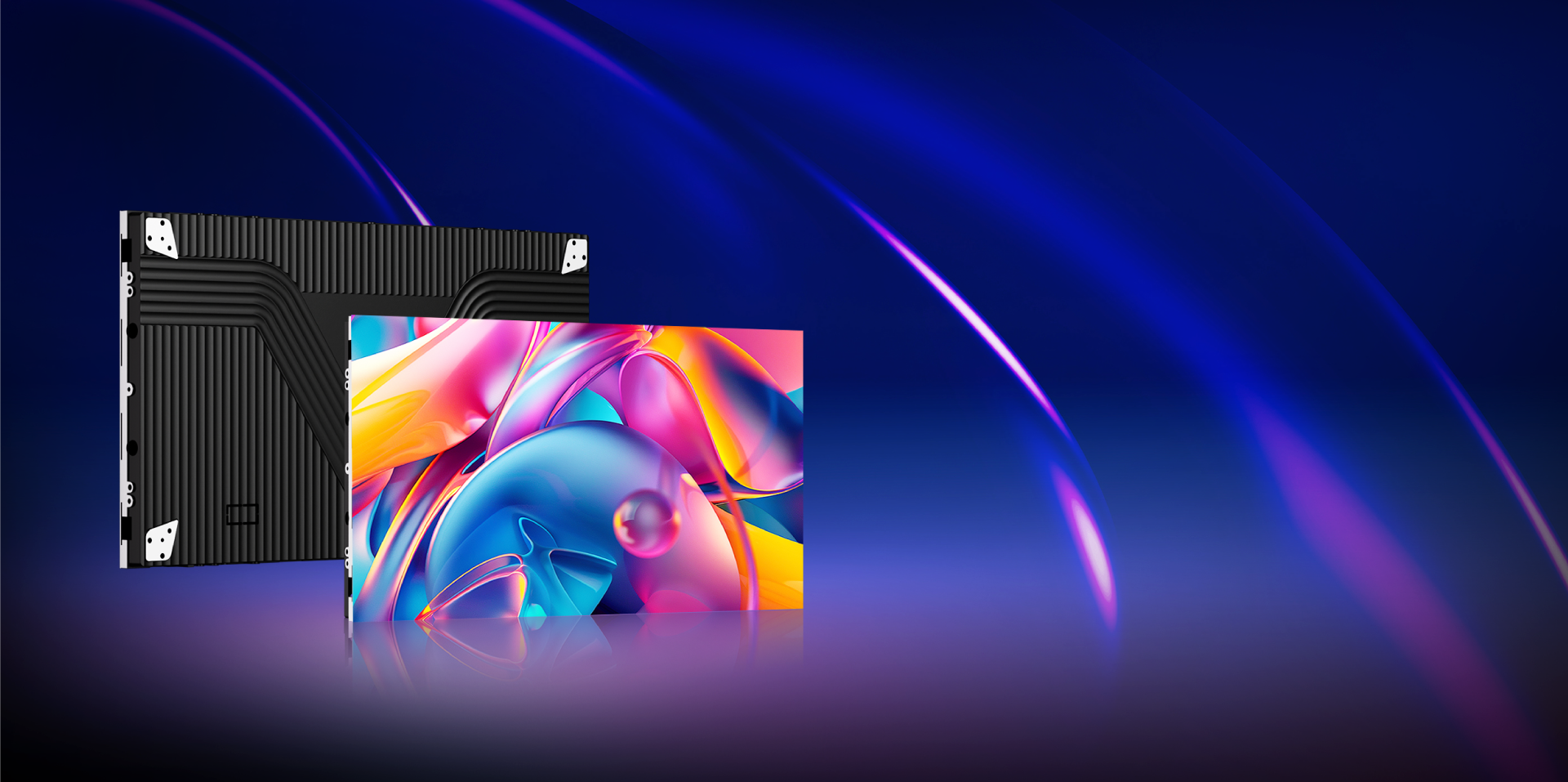

IRIS-Ultra Series MIP Panel
Pixel-Perfect Display
MIP - The Ultimate Breakthrough in Display Innovation

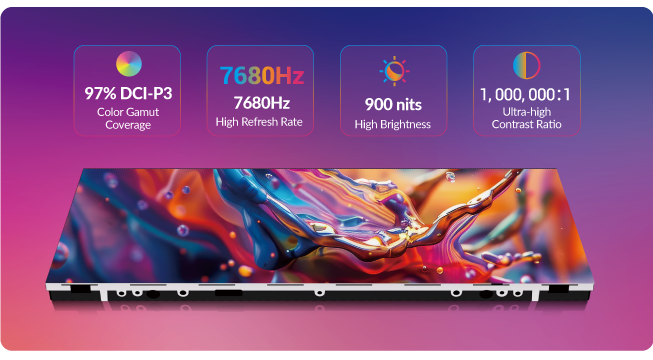

Smaller Pixels, Grander Vision
High-density integration, revel in the most vivid and lifelike visuals.

Slim Design, Tech Elegance

Ultra-thin 31mm cabinet, just 4.5kg in weight.

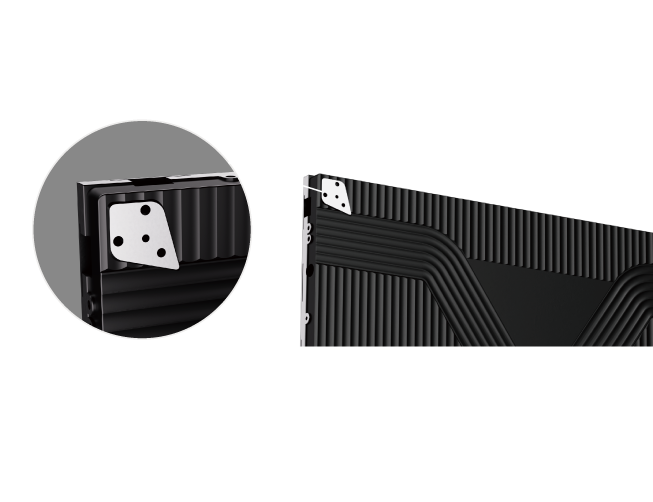

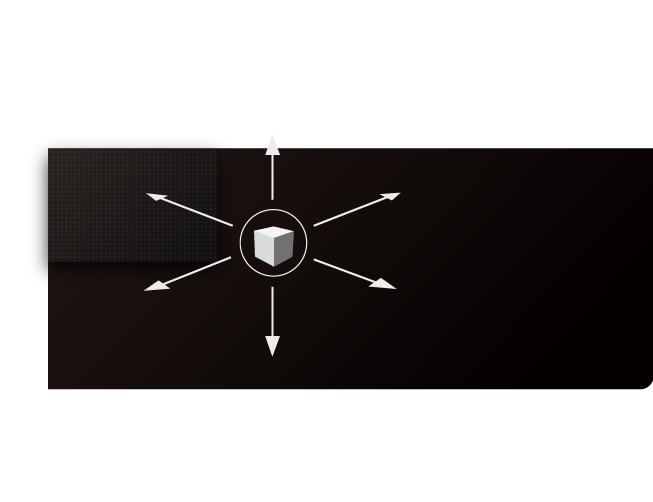

Three-axis Six-way Adjustment
The customized connectors combined with the magnets on the cabinet allow the module to adjust in three axes and six directions, ensuring a perfectly flat screen surface.

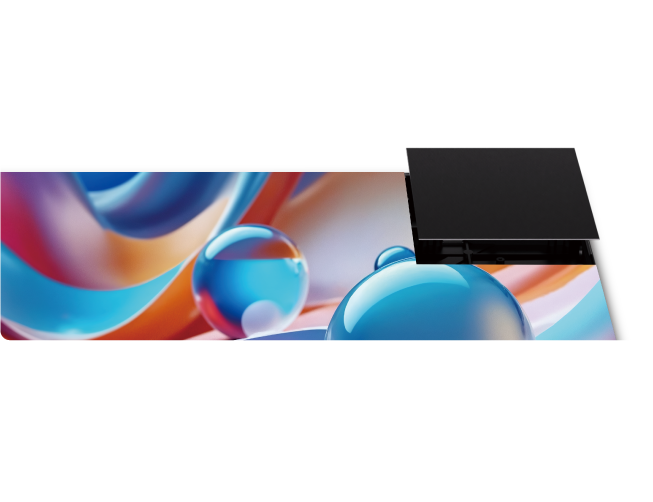

Full Front Maintenance Design
No need to reserve maintenance channel, saving installation space, more convenient installation and maintenance.

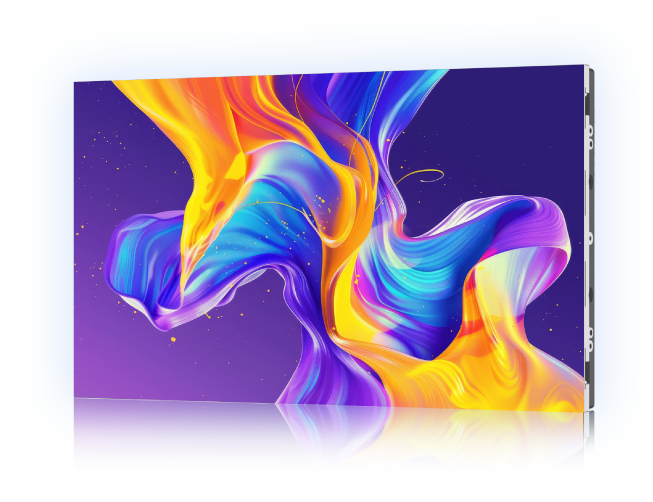

Dark as Ink, Smooth as a Mirror
The module adopts a matte black finish treatment, ensuring a uniform and consistent ink-like colour.

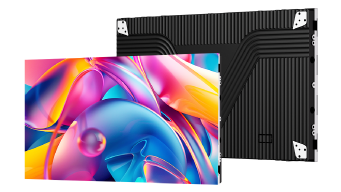

Bi-directional Front and Rear Mounting for Easy Installation
The cabinet supports front and rear bi-directional installation, suitable for various installation environments.

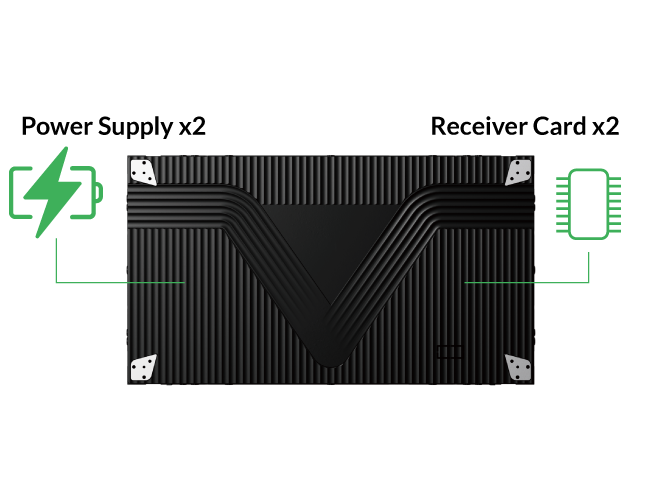

Dual Backup, Multiple Protection
The receiver card and power supply both support dual backups. If the signal receiver or power module fails, it will automatically switch to the backup module to ensure normal display and provide protection for continuous display.

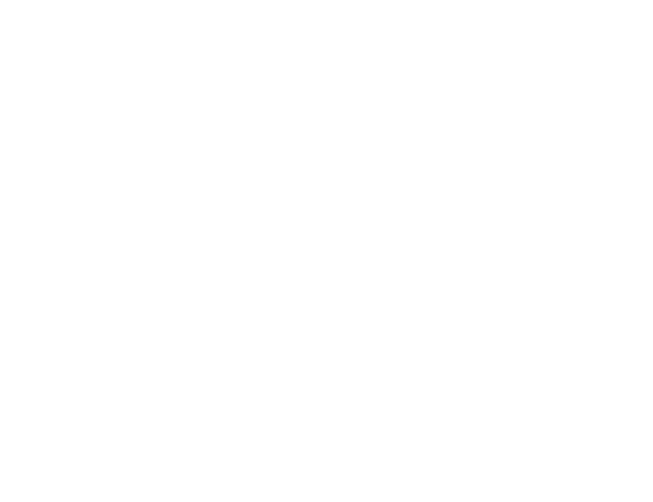

16:9 Golden Display Ratio
Arbitrary splicing FHD, UHD, FUHD large screen.
Specifications
IRIS-Ultra Series MIP Panel
M63-09VT
  • Model
  • Pixel Pitch(mm)
  • Resolution
  • Panel Technology
  • Unit Size(W x H x Dmm)
  • Surface Treatment
  • Brightness(nits)
  • Contrast Ratio
  • Color Temperature(K)
  • Frame Rate(Hz)
  • Refresh Rate(Hz)
  • Working Voltage
  • Power Consumption Max(W/m2)
  • Power Consumption AVG(W/m2)
  • Lifetime(Hours)
  • Operating Temp(°C)
  • Humidity Range(%RH)
  • Unit Weight(kg)
  • M63-09VT
  • P0.9375
  • 640*360
  • MIP
  • 600x337.5x31
  • Matte black fnish
  • 900
  • Up to 1,000, 000:1
  • 7500(Adjustable)
  • 60
  • 3840/7680
  • AC:100~240V,50/60Hz
  • 540
  • 180
  • 100, 000
  • -10~+50
  • 10-80(Non-condensing)
  • 4.5
