Lumiweave Series COB Texture Screen

Slim and Stunning, Smooth and Sleek

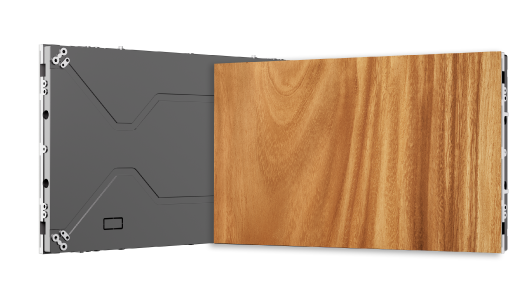

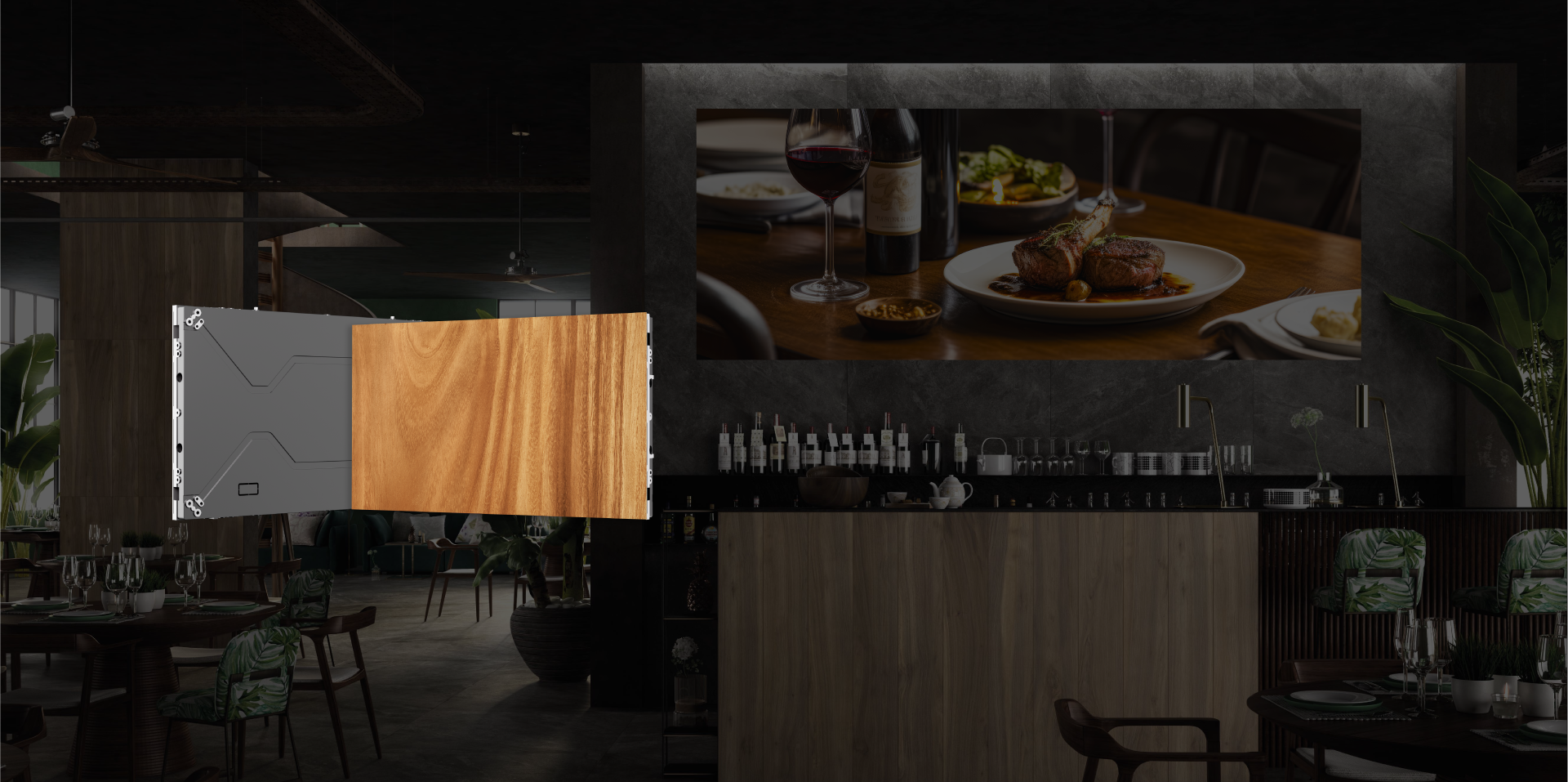

Die-casting cabinet with high flatness.

Full Flip-Chip COB Technology

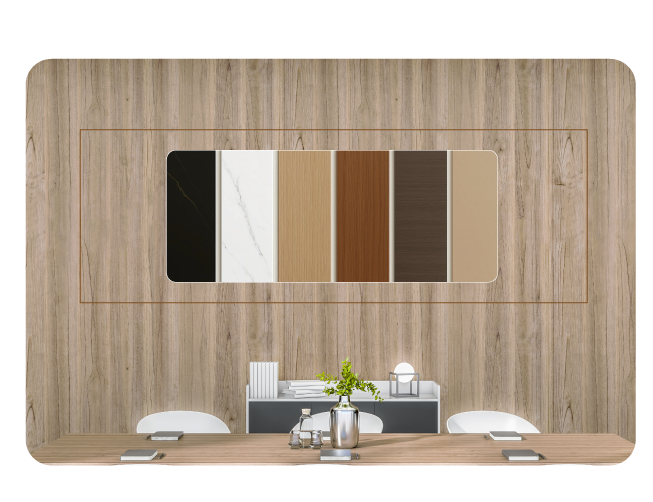

Blending Display, Redefining Aesthetics

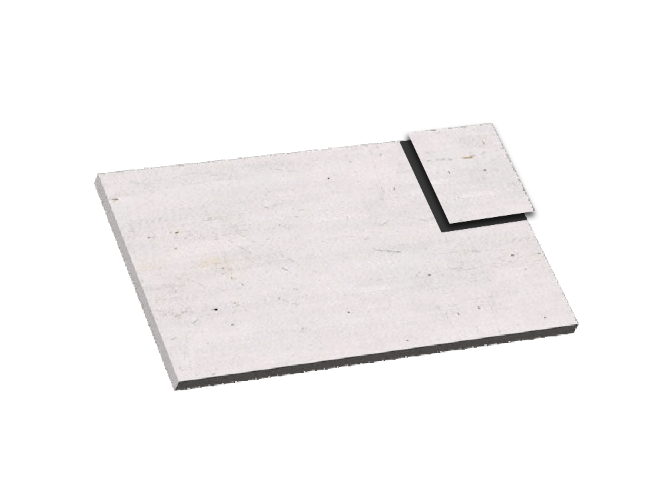

The screen surface can showcase a variety of textures, such as wood grain or tile patterns, perfectly blending display and decoration.

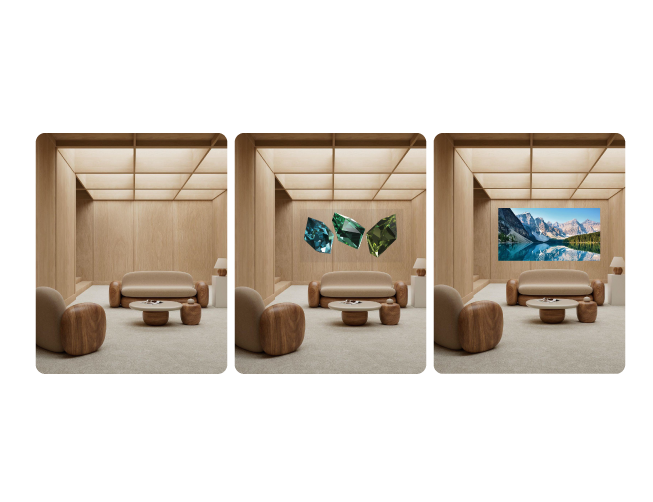

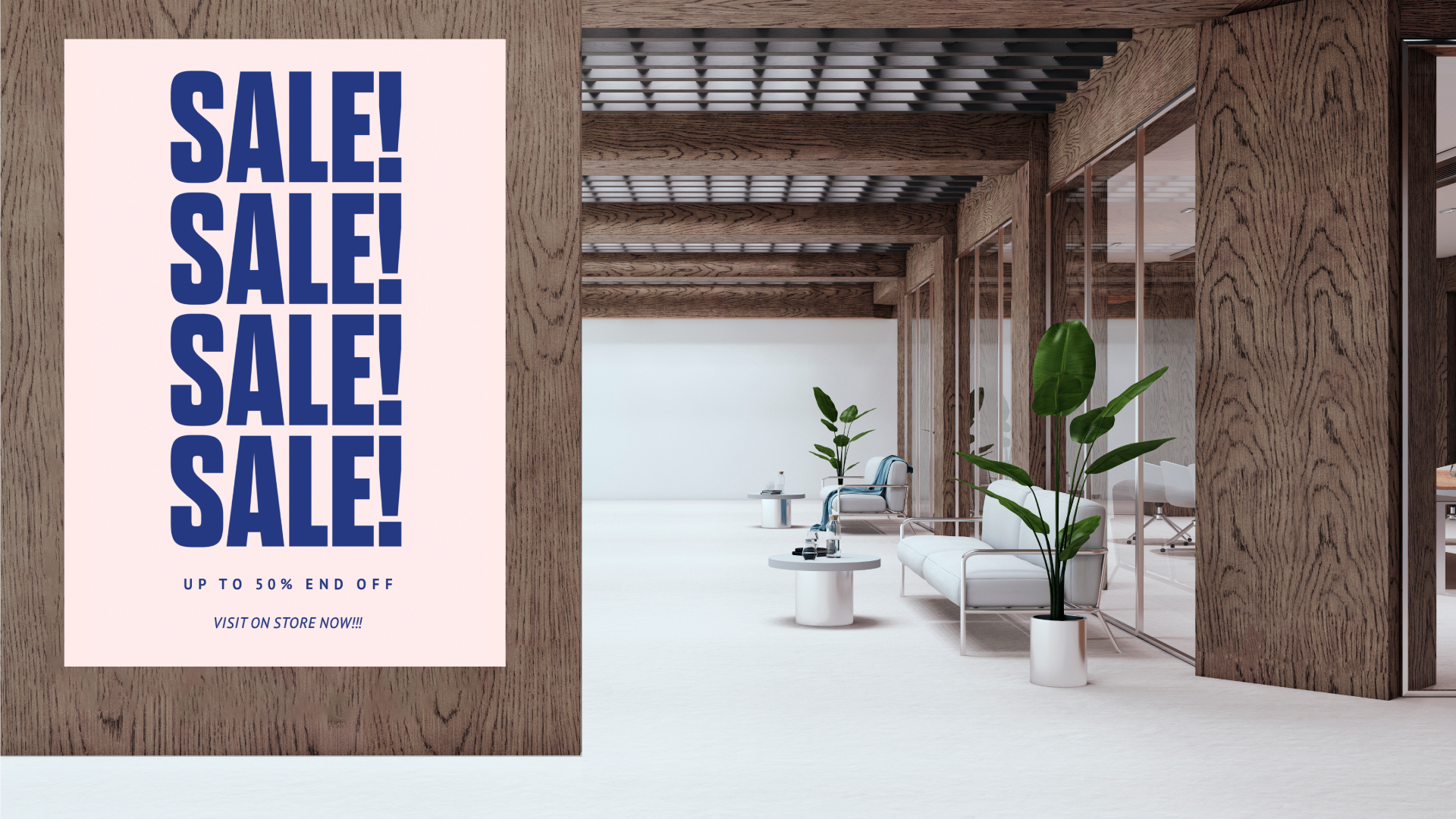

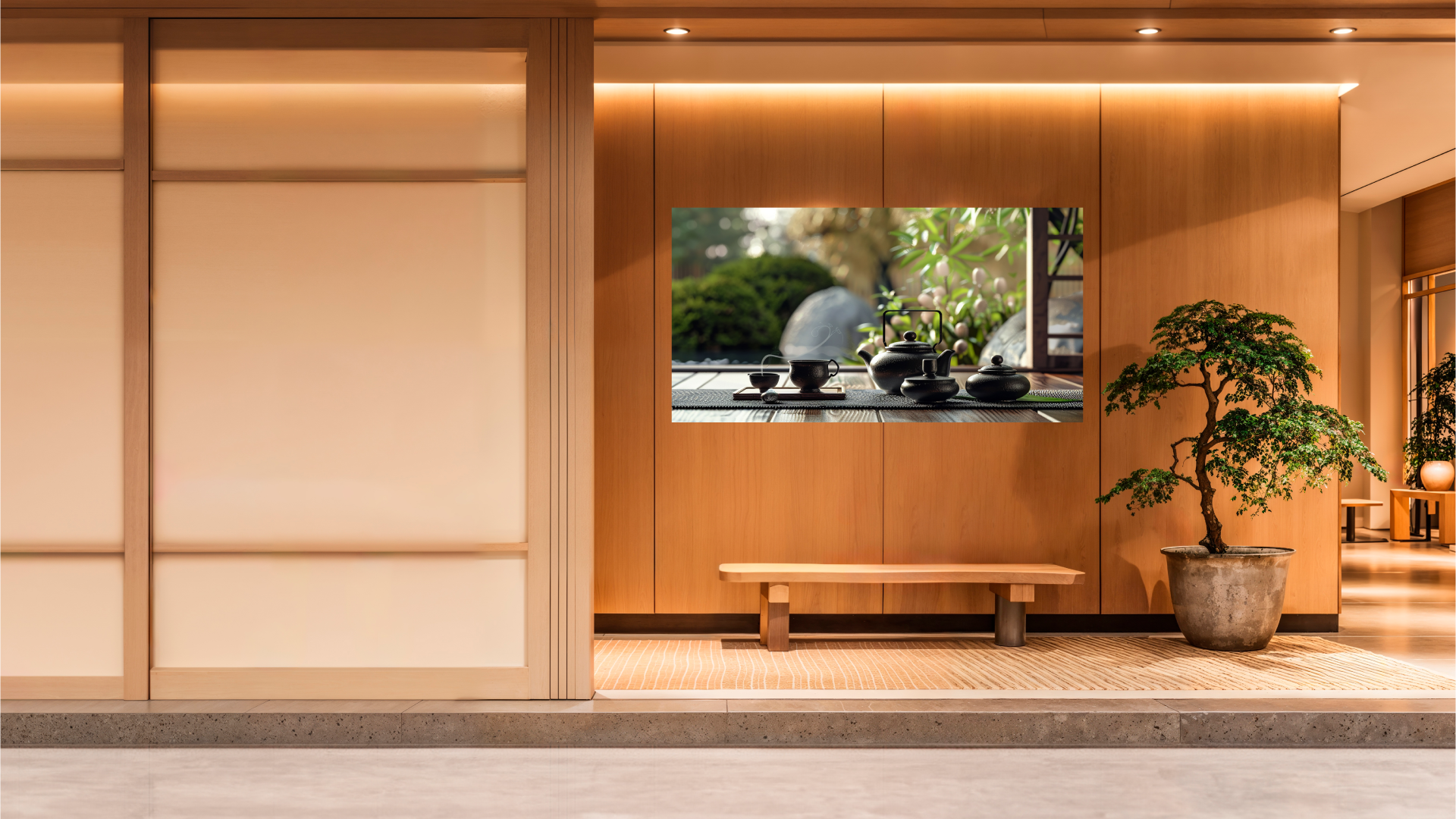

Wall and Screen, Perfectly United

Meets the needs of LED displays in interior design — when turned off, it becomes a decorative wall.

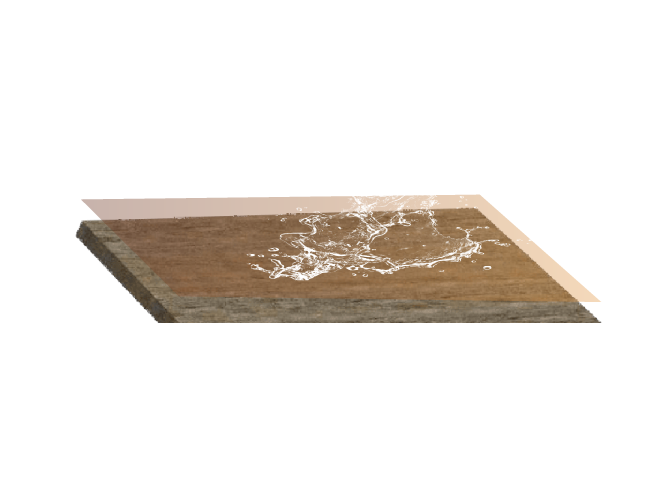

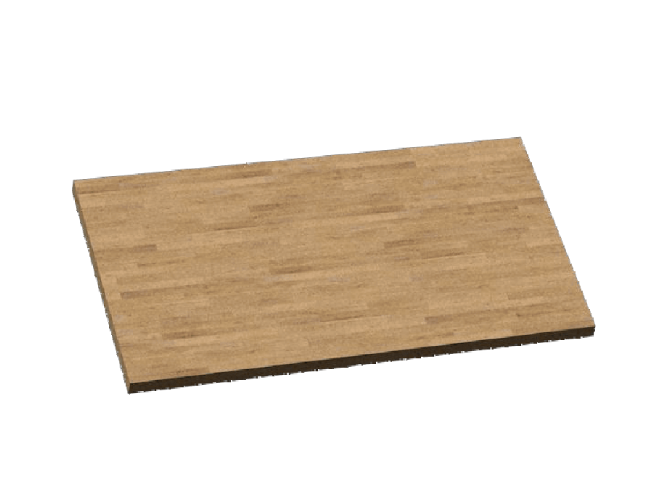

Front IP65 protection

The front of the module features an IP65 protection rating, providing water-proof, dust-proof and collision-proof.

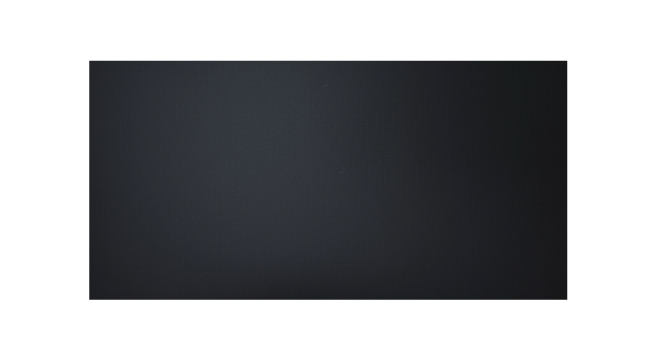

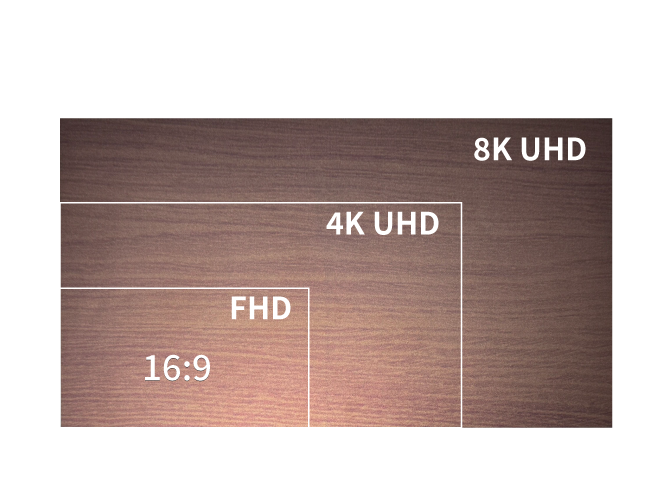

Standard 16:9 Aspect Ratio

The standard 16:9 aspect ratio enables stunning large-screen displays in FHD/4K/8K UHD resolution.

Full Front Maintenance Design

Hard Connection Design

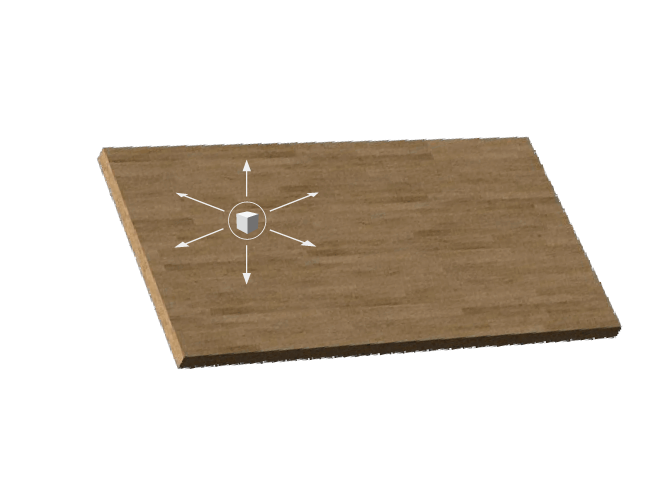

The hard connection design between the modules and the cabinet provides greater stability, supporting 3-axis, 6-direction adjustment, ensuring exceptional flatness.

Office Buildings

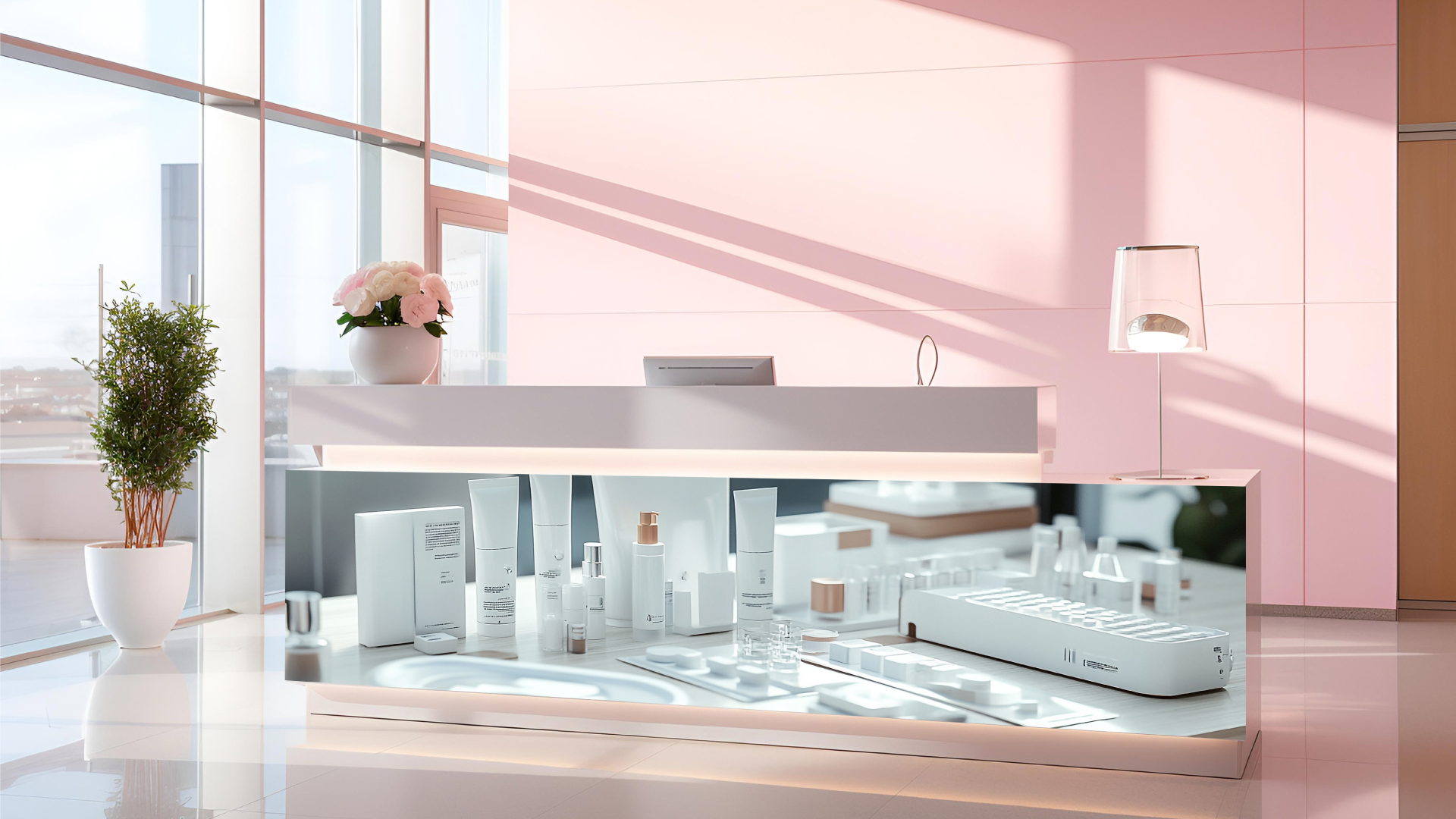

Brand Stores

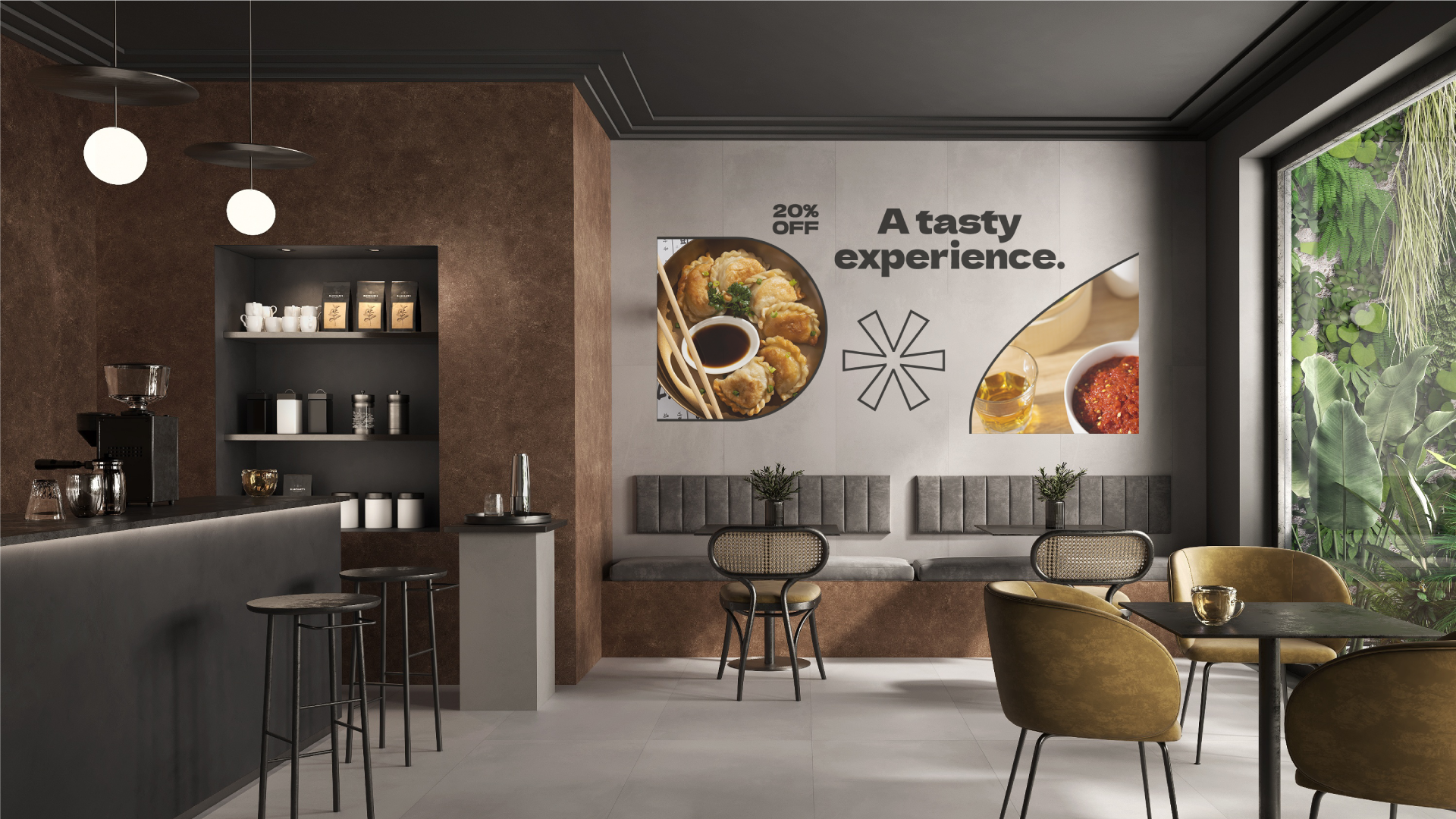

Dining & Entertainment

Commercial Spaces

Specifications

Lumiweave Series COB Texture Screen

C63-12VFA（W）

C63-15VFA（W）

C63-18VFA（W）

Model
Pixel Pitch(mm)
Panel Dimensions(WxHxD)(mm)
Module Size(WxH)(mm)
Resolution
Panel Technology
IP Rate
Brightness(nits)
Contrast Ratio
Color Temperature(K)
Viewing Angle(H./V.)
Frame Frequency(Hz)
Refresh Rate(Hz)
Working Voltage
Peak Power Consumption(W/m²)
Average Power Consumption(W/m²)
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)
Cabinet Weight (kg)

C63-12VFA（W）
P1.25
600 x 337.5 x 31
150 x 168.75
480*270
COB
700
1,000,000：1
7500(adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
495
165
100000
-10 ~ 50
10 ~ 80
4.5

C63-15VFA（W）
P1.5625
600 x 337.5 x 31
150 x 168.75
384*216
COB
700
1,000,000：1
7500(adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
495
165
100000
-10 ~ 50
10 ~ 80
4.5

C63-18VFA（W）
P1.875
600 x 337.5 x 31
150 x 168.75
320*180
COB
700
1,000,000：1
7500(adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
495
165
100000
-10 ~ 50
10 ~ 80
4.5

Related Downloads

Lumiweave Series COB Texture Screen

3.8MB

2025-11-20
