Flow Series COB Flexible Module Solution

Indoor Ultra-High Brightness Display

2000nits Ultra-High Brightness

＞Exceeding conventional screen brightness for
stunning visual performance

Industrial-Grade Stability

Flip-Chip Common Cathode COB Technology

＞lower power consumption, lower heat generation,
longer service life

Cinema-Quality Visual Experience

＞High contrast & wide color gamut

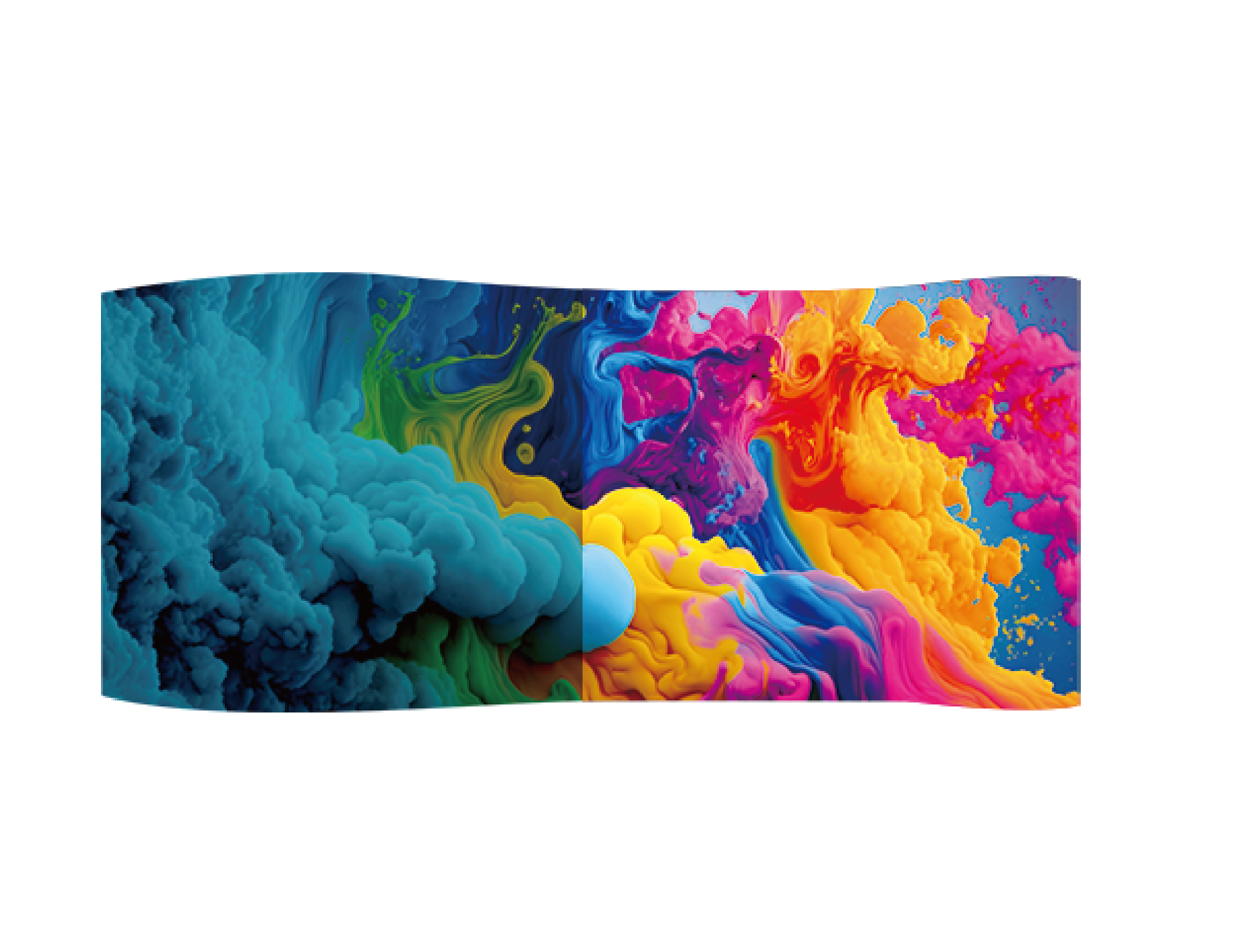

Flexible Design, Limitless Creativity

Bendable for larger curvature, adaptable to diverse applications

＞Supports X/Y/Z-axis dynamic deformation to create360° circular
screens, wave-shaped displays, and unique custom installations

Superior Protection for Maximum Safety

High durability with IP65-rated surface protection

＞Dustproof, anti-static, and impact-resistant
for long-lasting performance

Variety of assembly methods

Inner arc、Outer arc、Corner

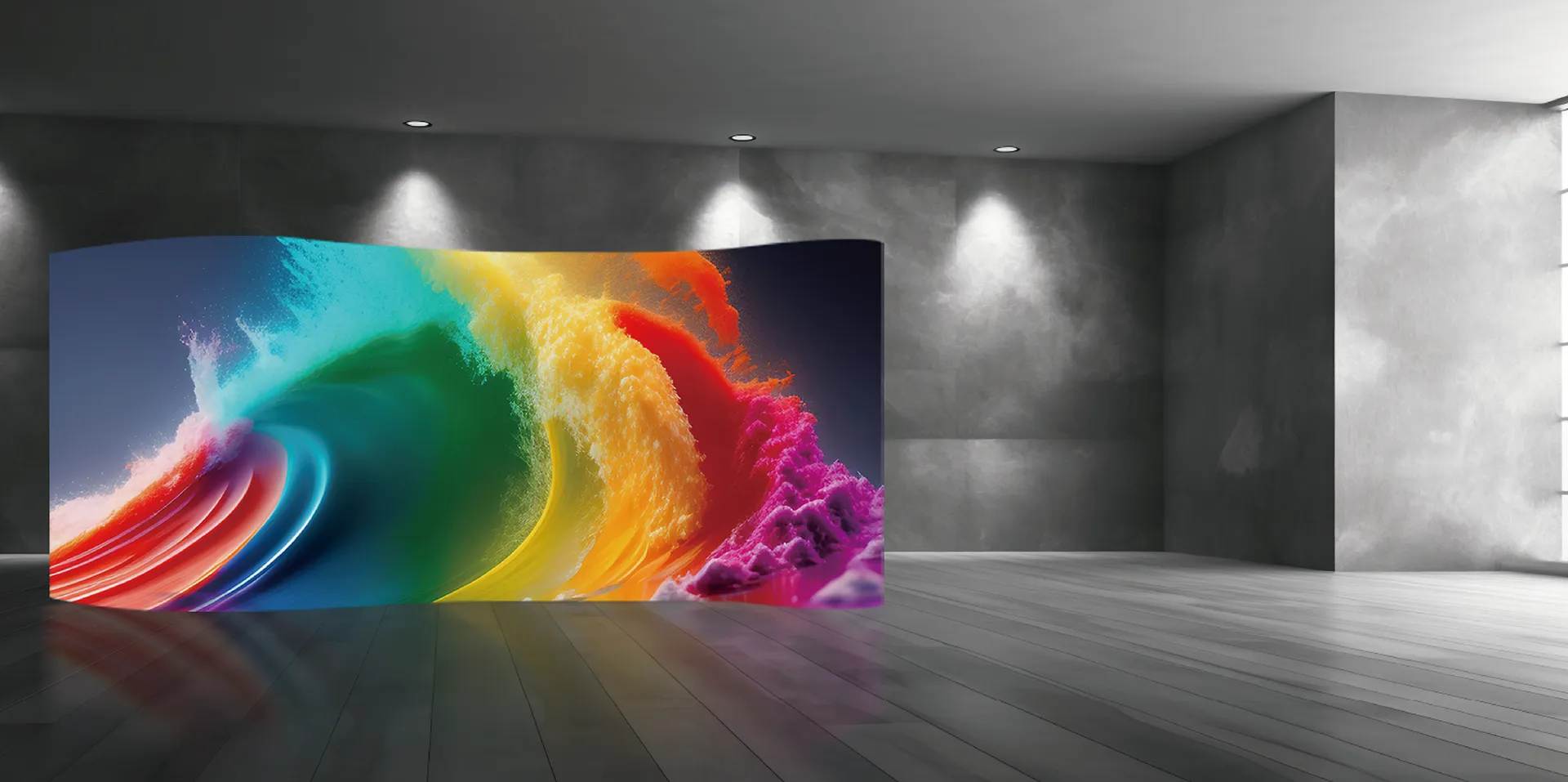

Multiple application scenarios

Shopping Center

Showroom

Creative Space

Luxury Hotel

Specifications

Flow Series

UMCS3016-1.25A

UMCS3016-1.56A

Model
Pixel Pitch (mm)
Panel Technology
Module Size(W×H×D)/(mm)
Module Resolution
Brightness(nits)
Contrast Ratio
Colour Temperature
Frame Rate(Hz)
Refresh Rate (Hz)
Working Voltage
Power Consumption Max(W/m²)
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)

UMCS3016-1.25A
P1.25
COB
300*168.75mm
240*135
800~2000
1000000：1
3000K~9300K
60
3840
AC：100V~240V，50/60Hz
380（1200nits）
100000
-10 ~ +50
10%~80%

UMCS3016-1.56A
1.5625
COB
300*168.75mm
192*108
800~2000
1000000：1
3000K~9300K
60
3840
AC：100V~240V，50/60Hz
350（1200nits）
100000
-10 ~ +50
10%~80%

Related Downloads

Flow Series COB Flexible Module Solution

2.3MB

2025-02-26
