NSO MAX Series

NSO MAX Series
Outdoor LED Panel

Ultra-High Refresh Rate for Smooth Visuals

Experience crystal-clear visuals with ultra-high refresh
rates up to 7680Hz—delivering fluid motion, fine detail,
and immersive clarity for premium applications.

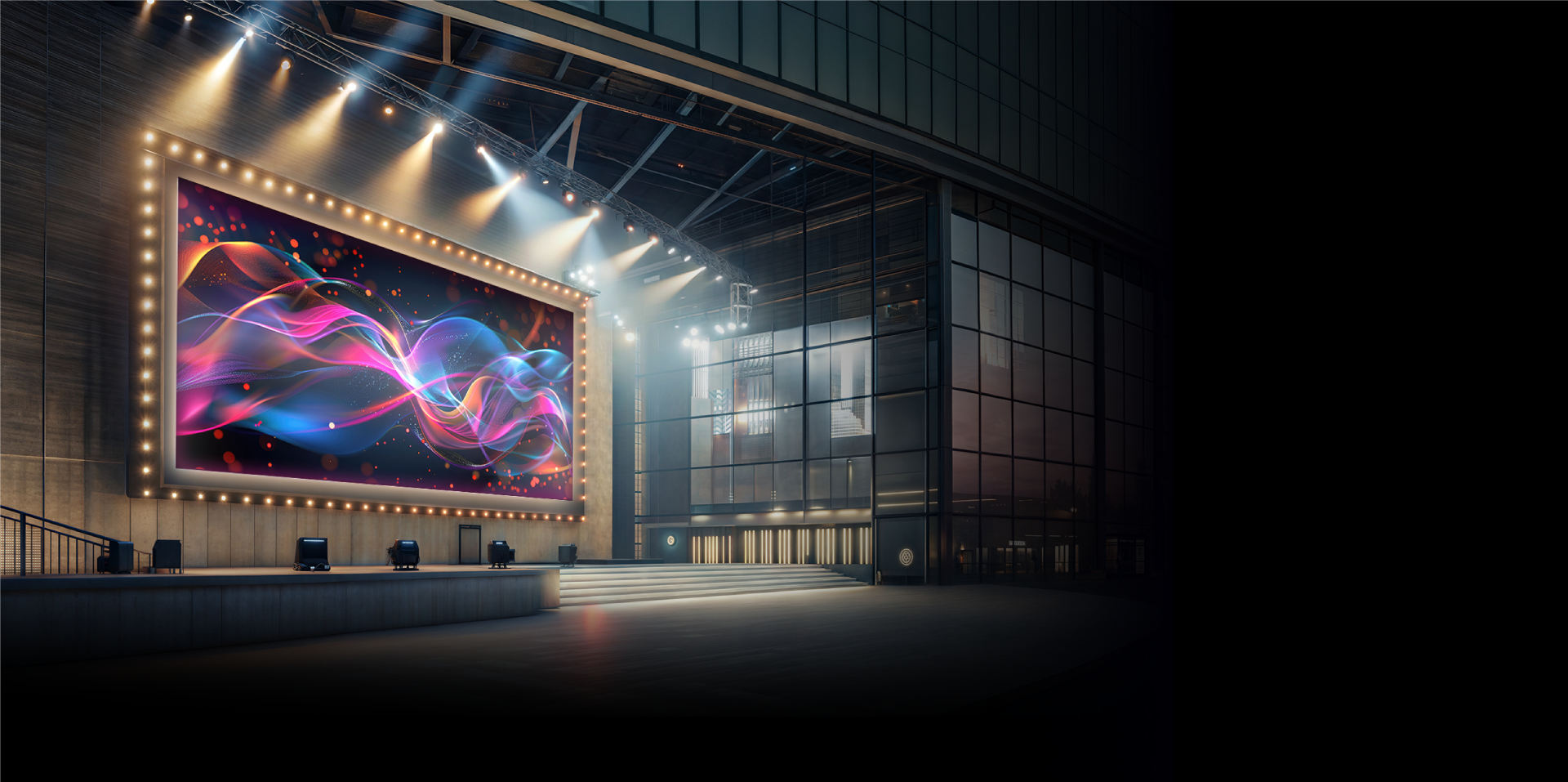

Bright and Vivid Even Under Strong Light

With up to 10,000 nits of brightness and high contrast, your content stays vivid and sharp—even under direct sunlight.

Greener Displays for a Smarter Future

Eco-conscious design with low energy consumption—better for your
business and the planet.

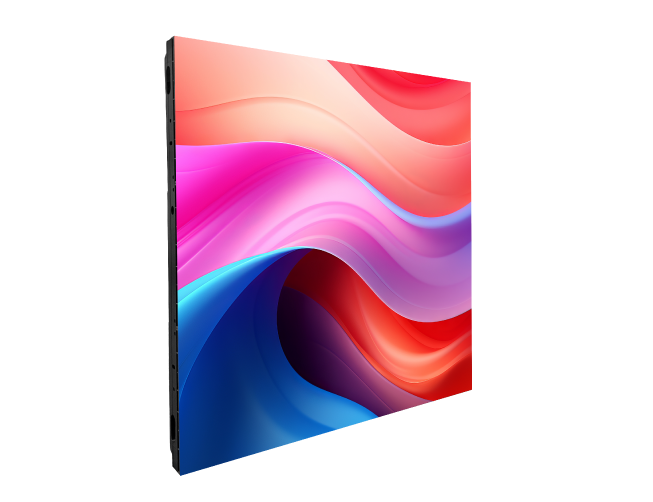

Ultra-Slim Design, Built for Efficiency

Designed with a 960×960mm aluminum cabinet, the display is thinner

and lighter—making installation quicker and more efficient.

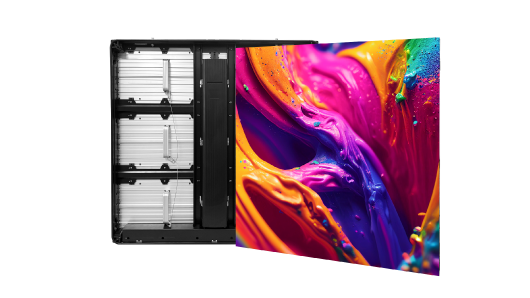

Front & Rear Maintenance Supporte

Flexible access from both front and back sides for easier installation

and service—perfect for various environments.

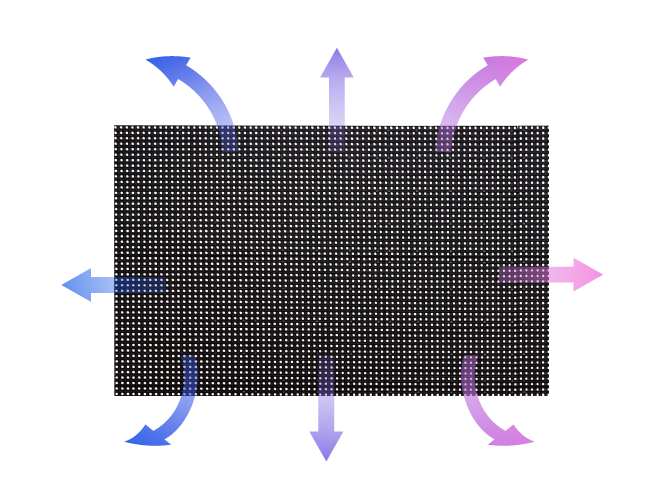

Stay Cool, Run Longer

With thermal gel inside the module for superior heat dispersion—ensuring
only a 5°C difference between front and back, delivering long-lasting stability

Durable Hard Connection Design

Hard connection between modules and power supply ensures
enhanced reliability and durability.

Specifications

NSO MAX Series

D99-5P7VD

D99-6P6VD

Model
Pixel Pitch(mm)
Resolution
Panel Dimensions(W × H) (mm)
Module Size(W × H) (mm)
IP Rate
Brightness(nits)
Contrast Ratio
Colour Temperature(K)
Refresh Rate(Hz)
Frame Frequency(Hz)
Viewing Angle(H./V.)
Average Power Consumption(W/m2)
Peak Power Consumption(W/m2)
Working Voltage
Lifetime(Hours)
Operating Temp(C)
Humidity Range(%RH)
Cabinet Weight (kg)

D99-5P7VD
P5.71
168*168
960x960
480x320
IP65
10,000
8,000:1
3,000 ～ 9,300(adjustable)
3840/7680
60
140°/120°
170
500
AC：100~240V，50/60Hz
100,000
-20～50
10～90
27

D99-5P7VD
P6.67
168*168
960x960
480x320
IP65
10,000
8,000:1
3,000 ～ 9,300(adjustable)
3840/7680
60
140°/120°
150
450
AC：100~240V，50/60Hz
100,000
-20～50
10～90
27

Related Downloads

NSO MAX Series Outdoor LED Panel
