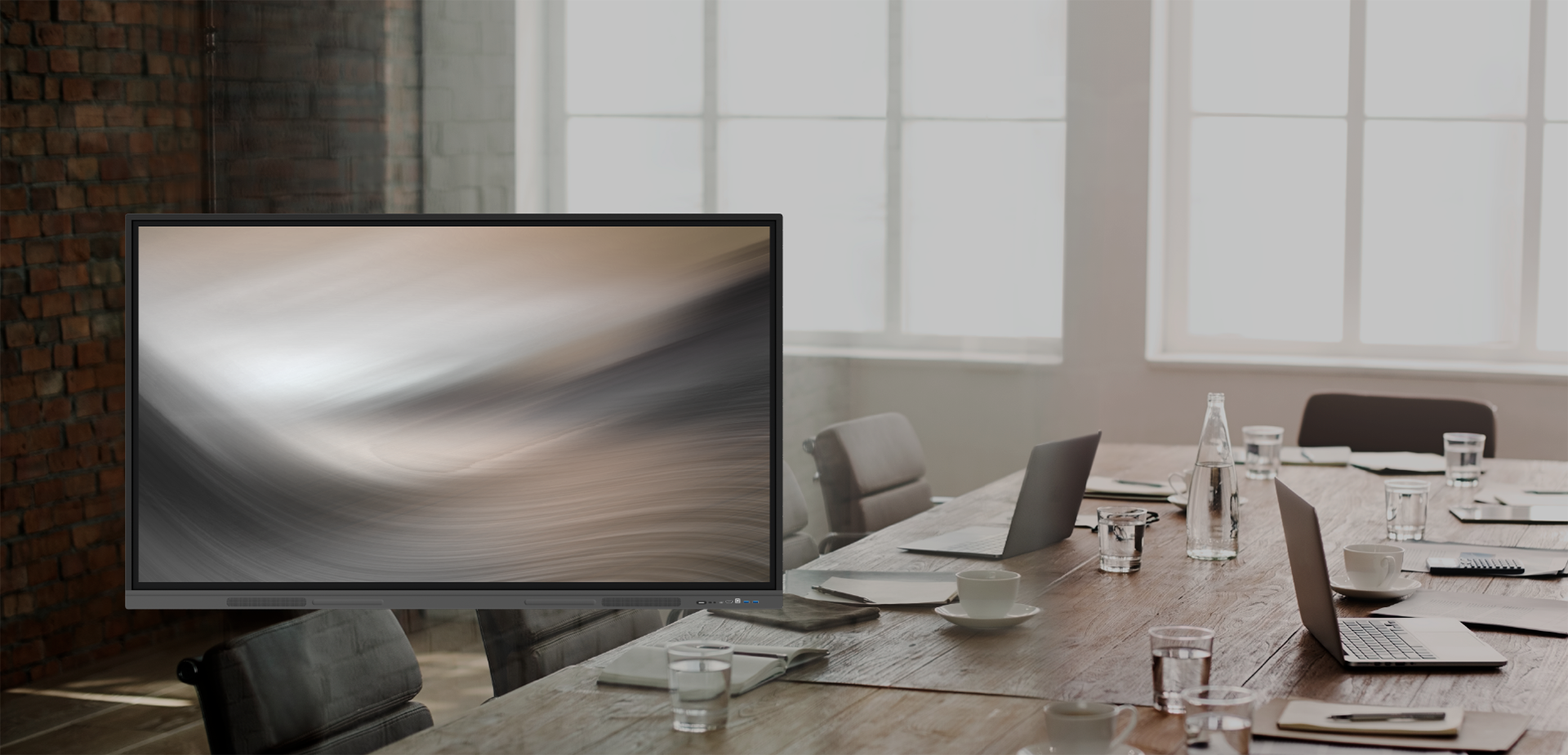

LCD Conference All-in-One

Android 11.0

1300W/4800W pixel autofocus camera

6-array microphone

Split-screen multitasking

Wireless screen casting, unlimited sharing

Support mobile phones, tablets, computers and other terminals to cast screens wirelessly across systems, allowing up to 4 screens to be displayed simultaneously.

Anti-glare tempered glass

With 3mm high-strength anti-glare toughened glass, it effectively reduces scratches from long-term use, resists the effects of high light exposure in the conference environment and gives you a high-definition and detailed display.

Smart writing at your fingertips

Support two pens writing at the same time with a two-colour display, making it easier for multiple people to collaborate. Support convenient operations such as gesture erasure and drag-and-drop navigation, effectively improving meeting efficiency.

Specifications

LCD Conference All-in-One

SR65LCDVB-U

SR75LCDVB-U

SR86LCDVB-U

SR98LCDVB-U

SR110LCDVB-U

Model
Panel Size
Backlight Category
Bare Dimension(W x H x Dmm)
Power Consumption(W)
Speakers Power
System
Optimum Resolution
Viewing Angle
Brightness(cd/m²)
Contrast Ratio
Response Time(ms)
Camera
Operating Voltage
Operating Temp(°C)
Humidity Range
Front Port
Input/Output

SR65LCDVB-U
65”
DLED
1488*906*87
400
2*15W
Android 11.0
3840*2160
178°
350
1200:1
8
Built-in 1300W pixel camera
100 ~ 240V，50/60Hz
-10 ~ 50
10% ~ 80%RH
HDMI IN x 1,USB3. 0 x 2，TOUCH OUT x 1,TYPE-C x 1
HDMI IN x 2,HDMI OUT x 1,USB2.0 x 1,USB3.0 x 2,TOUCH x 1,VGA IN x 1,
AUDIO IN x 1,AUDIO OUT x 1,SPDIF x 1,RS232 x 1,RJ45 OUT x 1,RJ45 IN x 1

SR75LCDVB-U
75”
DLED
1709*1029*88
400
2*15W
Android 11.0
3840*2160
178°
350
1200:1
8
Built-in 1300W pixel camera
100 ~ 240V，50/60Hz
-10 ~ 50
10% ~ 80%RH
HDMI IN x 1,USB3. 0 x 2，TOUCH OUT x 1,TYPE-C x 1
HDMI IN x 2,HDMI OUT x 1,USB2.0 x 1,USB3.0 x 2,TOUCH x 1,VGA IN x 1,
AUDIO IN x 1,AUDIO OUT x 1,SPDIF x 1,RS232 x 1,RJ45 OUT x 1,RJ45 IN x 1

SR86LCDVB-U
86”
DLED
1957*1169*88
550
2*15W
Android 11.0
3840*2160
178°
350
1200:1
8
Built-in 1300W pixel camera
100 ~ 240V，50/60Hz
-10 ~ 50
10% ~ 80%RH
HDMI IN x 1,USB3. 0 x 2，TOUCH OUT x 1,TYPE-C x 1
HDMI IN x 2,HDMI OUT x 1,USB2.0 x 1,USB3.0 x 2,TOUCH x 1,VGA IN x 1,
AUDIO IN x 1,AUDIO OUT x 1,SPDIF x 1,RS232 x 1,RJ45 OUT x 1,RJ45 IN x 1

SR98LCDVB-U
98”
DLED
2217*1331*104
550
2*16W
Android 11.0
3840*2160
178°
350
1200:1
8
Built-in 4800W pixel camera
100 ~ 240V，50/60Hz
-10 ~ 50
10% ~ 80%RH
HDMI IN x 1,USB3. 0 x 2，TOUCH OUT x 1,TYPE-C x 1
HDMI IN x 2,HDMI OUT x 1,
USB2.0 x 1,USB3.0 x 2,
TOUCH x 1,DP IN x 1,
EARPHONE x 1,RS232 x 1,
RJ45 OUT x 1,RJ45 IN x 1,
COAX x1,MIC x 1

SR110LCDVB-U
110”
DLED
2500*1507*106
850
2*16W
Android 11.0
3840*2160
178°
440
1200:1
8
Built-in 4800W pixel camera
100 ~ 240V，50/60Hz
-10 ~ 50
10% ~ 80%RH
HDMI IN x 1,USB3. 0 x 2，TOUCH OUT x 1,TYPE-C x 1
HDMI IN x 2,HDMI OUT x 1,
USB2.0 x 1,USB3.0 x 2,
TOUCH x 1,DP IN x 1,
EARPHONE x 1,RS232 x 1,
RJ45 OUT x 1,RJ45 IN x 1,
COAX x1,MIC x 1
