V-Sight Air Indoor Advertising Kiosk

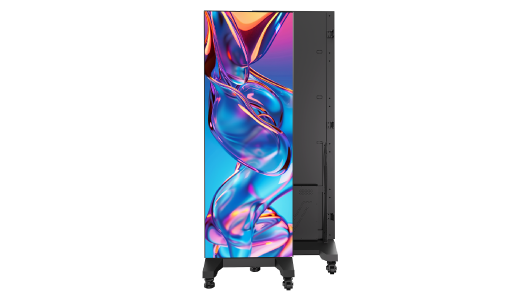

70” V-Sight Air
Indoor Advertising Kiosk

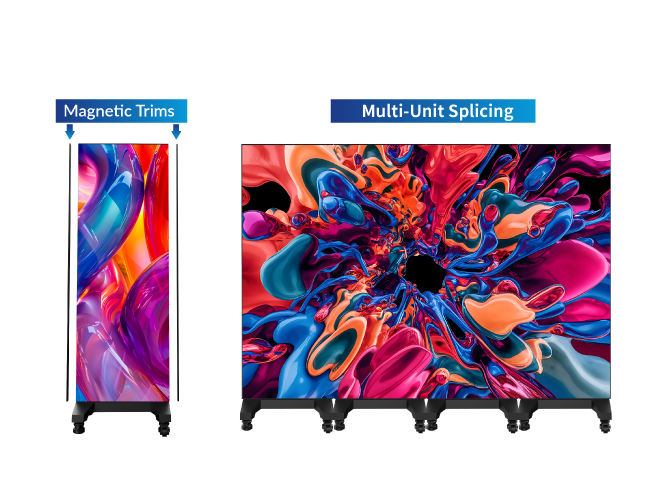

Magnetic Splicing, Efficient Cascading

The magnetic trims and quick-lock design enable efficient cascading and splicing for instant large-screen displays.

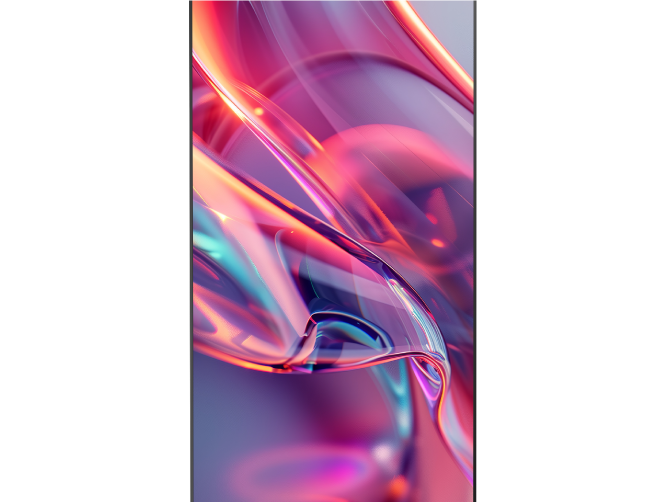

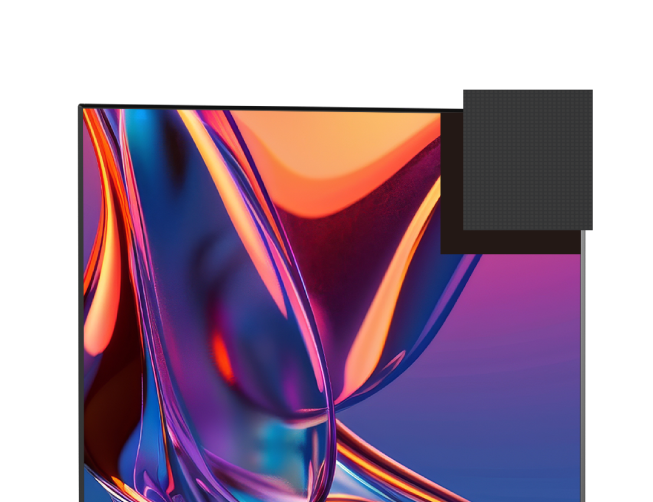

COB TrueColor-Brilliance in Every Pixel

Full flip-chip COB technology delivers wide color gamut, high contrast ratio, and uniform black levels.

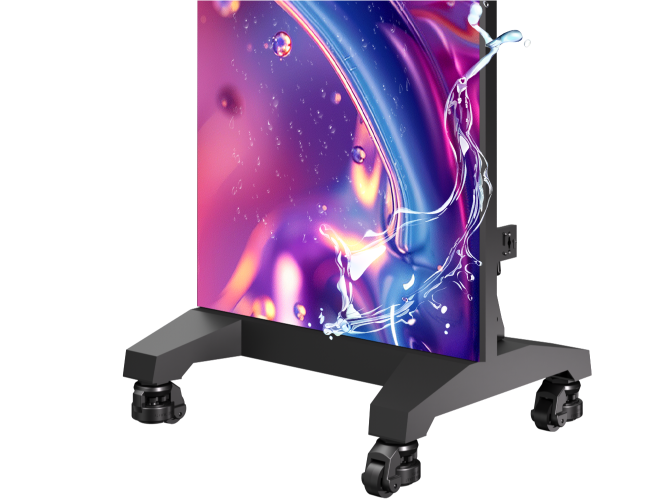

IP65 Protection, Stable and Durable

The front side of the modules is IP65-rated for water, dust, and impact resistance.

Full Front Maintenance

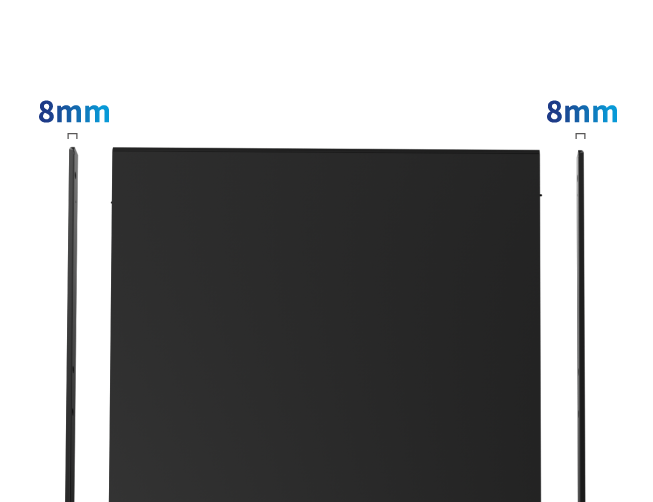

8mm Ultra-Slim Trims, Immersive Visuals

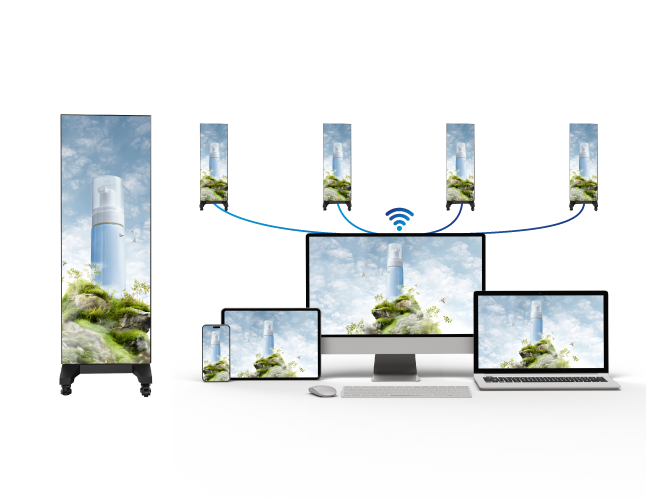

Cloud Connection, Wireless Control

Users can use a variety of terminal devices, such as PCs, mobile phones, and tablets, to uniformly control multiple advertising kiosks through a wireless network for programme delivery, screen control, and other operations.

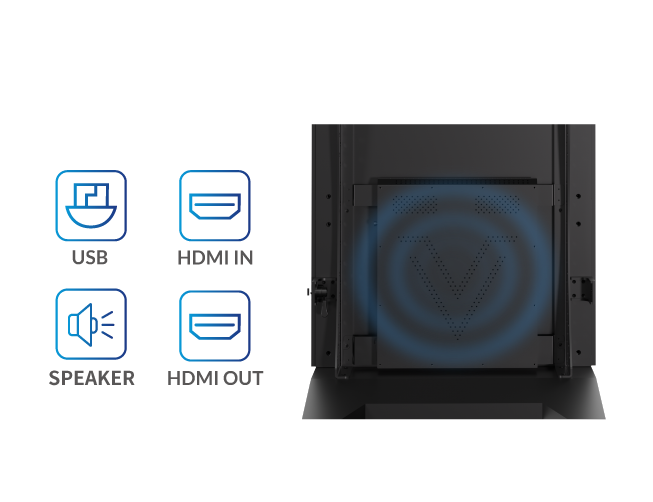

Blending into One, More than Just Display

With built-in speakers, the advertising kiosk requires no external audio equipment and has multiple types of signal ports to meet different application scenarios.

Specifications

V-Sight Air

KU70COBVB-12SCP（1）

KU70COBVB-15SCP（1）

KU70COBVB-12SNP（1）

KU70COBVB-15SNP（1）

Model
Panel Technology
Pixel Pitch(mm)
Resolution
Actual Screen Dimensions(W x Hmm)
Overal Dimensions(W x H x Dmm)
Weight(kg)
Brightness(nits)
Viewing Angle(H./V.)
Colour Temperature
Gray Scale(Bit)
Refresh Rate(Hz)
Working Voltage
Power Consumption Max(W)
Power Consumption Avg(W)
Operating Temp(°C)
Humidity Range(%RH)
Display Mode

KU70COBVB-12SCP（1）
COB
P1.25
480*1350
600 x 1687.5
616 x 1862.1 x 35.1（490）
45
600
170°/170°
2500~10000（Adjustable）
14
3840
AC:100V~240V, 50/60Hz
≤320
≤110
-10 ~ 50
10 ~ 80
Synchronous/ Asynchronous

KU70COBVB-15SCP（1）
COB
P1.5625
384*1080
600 x 1687.5
616 x 1862.1 x 35.1（490）
45
600
170°/170°
2500~10000（Adjustable）
14
3840
AC:100V~240V, 50/60Hz
≤330
≤110
-10 ~ 50
10 ~ 80
Synchronous/ Asynchronous

KU70COBVB-12SNP（1）
COB
P1.25
480*1350
600 x 1687.5
616 x 1862.1 x 35.1（490）
45
600
170°/170°
2500~10000（Adjustable）
14
3840
AC:100V~240V, 50/60Hz
≤320
≤110
-10 ~ 50
10 ~ 80
Synchronous/ Asynchronous

KU70COBVB-15SNP（1）
COB
P1.5625
384*1080
600 x 1687.5
616 x 1862.1 x 35.1（490）
45
600
170°/170°
2500~10000（Adjustable）
14
3840
AC:100V~240V, 50/60Hz
≤330
≤110
-10 ~ 50
10 ~ 80
Synchronous/ Asynchronous
