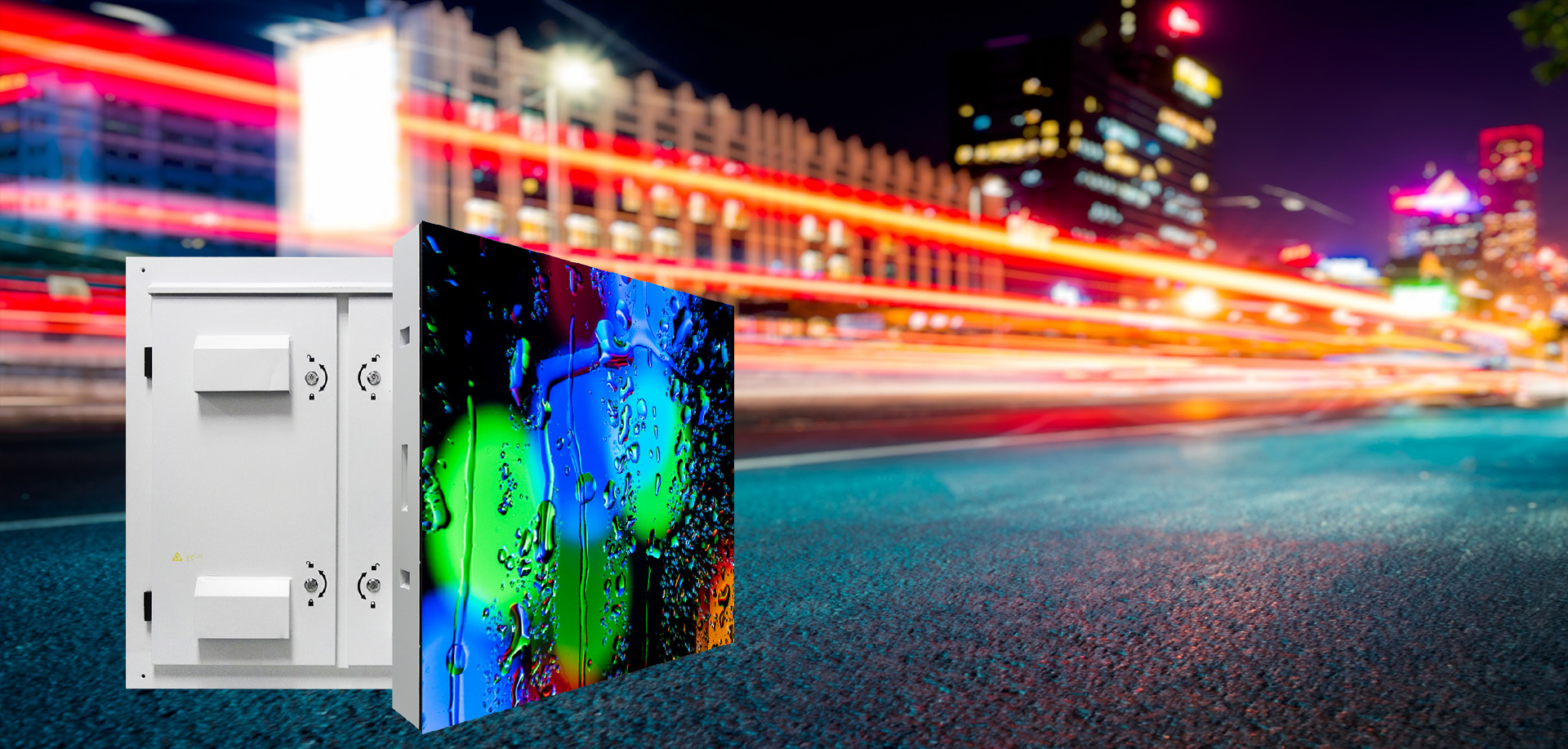

ELO Series

Diverse pixel pitch options: choose from P2.5 to P10

To meet the needs of different application scenarios, we offer a range of pixel pitches to choose from. Whether you need high-definition and intricate visuals or larger-scale advertising displays, the ELO series can be tailored to your needs.

IP65 protection level, unfazed by any outdoor challenge

With an IP65 protection rating, the ELO series easily withstands storms, typhoons, salt spray, and other harsh weather.

Multiple applications

Outdoor Performance

Billboard

Shopping Mall

Commercial Center

Specifications

ELO Series Outdoor LED Panel

D99-2P5VC

D99-4PVC

D99-5PVC

D99-6P6VC

D99-8PVC

D99-10PVC

Model
Pixel Pitch(mm)
Resolution
Cabinet Size(W x H x Dmm)
Module Size(W x H x D) (mm)
Cabinet Weight (kg)
IP Rate
Brightness(nits = cd/m²)
Contrast Ratio
Frame Rate(Hz)
Refresh Rate(Hz)
Colour Temperature(K)
Viewing Angle(H./V.)
Peak Power Consumption(W/m²)
Average Power Consumption(W/m²)
Working Voltage
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)

D99-2P5VC
P2.5
384*384
960 x 960 x 119
320 x 160
40
IP65
4500
8000:1
60
3840
3000~9300(adjustable)
160°/140°
850
285
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

D99-4PVC
P4
240*240
960 x 960x119
320 x 160
40
IP65
5500
8000:1
60
3840
3000~9300(adjustable)
160°/140°
850
285
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

D99-5PVC
P5
192*192
960 x 960 x119
320 x 160
40
IP65
5000
8000:1
60
3840
3000~9300(adjustable)
160°/140°
850
285
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

D99-6P6VC
P6.67
144*144
960 x 960 x119
320 x 160
40
IP65
5500
8000:1
60
3840
3000~9300(adjustable)
160°/140°
850
285
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

D99-8PVC
P8
120*120
960 x 960 x119
320 x 160
40
IP65
5500
8000:1
60
3840
3000~9300(adjustable)
160°/140°
800
270
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

D99-10PVC
P10
96*96
960 x 960 x119
320 x 160
40
IP65
5500
8000:1
60
3840
3000~9300(adjustable)
160°/140°
800
270
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

Related Downloads

ELO Series Outdoor LED Panel

3.4MB

2023-04-17
