Sunlit Max-S Series

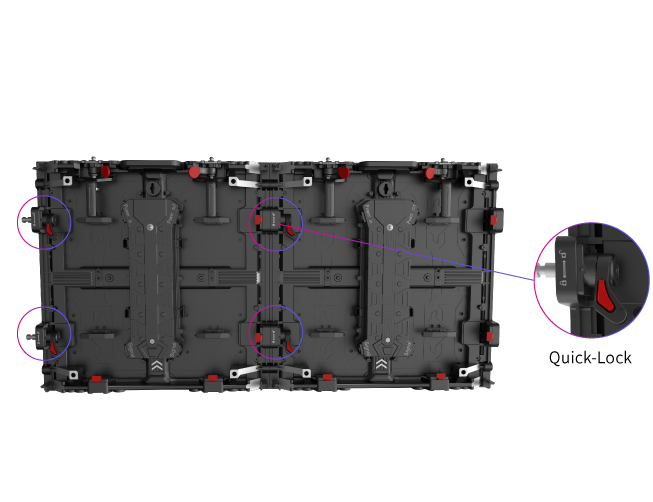

Quick-Lock Design

The quick-lock design between cabinets

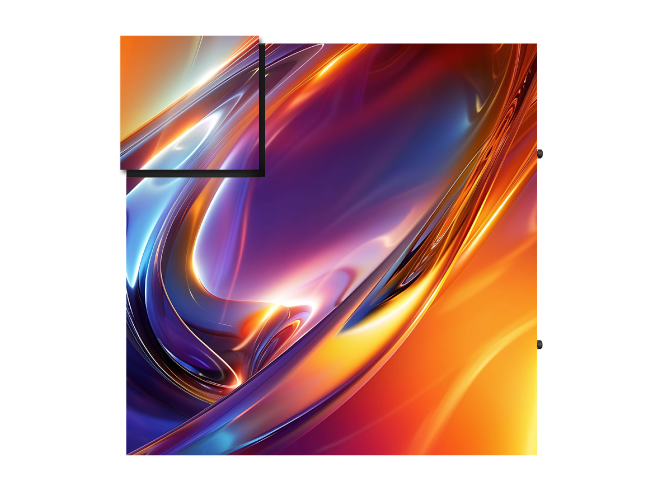

Magnetic Attachment

The magnetic attachment between the cabinet and modules

Front and rear maintenance

Support for front and rear maintenance, different maintenance methods can be selected according to different application scenarios.

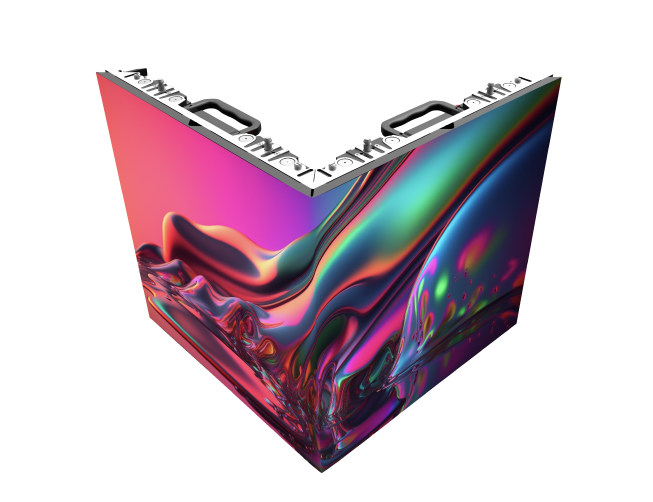

90° right angle splicing

The Sunlit Max Series supports 90° splicing, bringing creative display ideas to life.

High Brightness

4000nits

Full Flip-Chip COB Technology,Representing Premium Outdoor Displays

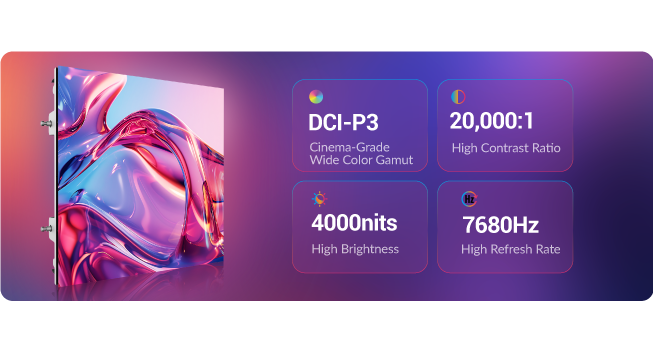

Wide color gamut and high contrast ratio faithfully reproduce every detail.

High brightness and refresh rate deliver smooth visuals.

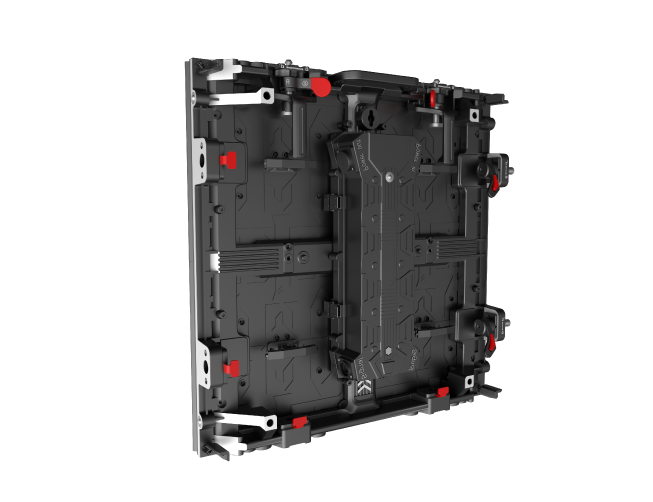

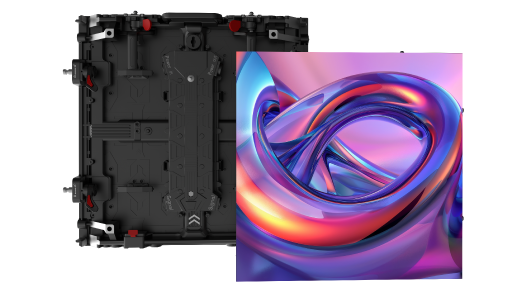

Die-Cast Cabinet, Ensuring Ultimate Flatness

500x500mm die-cast cabinet delivers superior flatness.

Front & Rear Maintenance, Easy and Efficient

Supports both front and rear maintenance, meeting various project requirements.

Right-Angle Splicing, Breaking Display Boundaries

Supports 90° splicing, bringing creative display ideas to life.

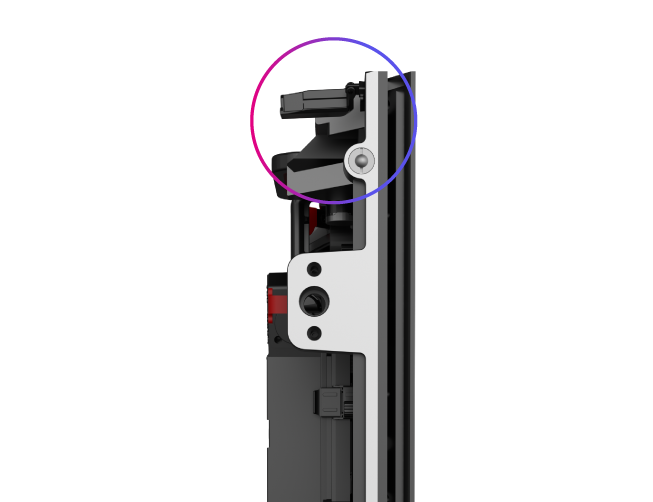

Foldable Corner Protectors, Designed for Comprehensive Impact Resistance

Foldable corner guards protect modules from bumps and knocks.

Hard Connection Design, Stable & Durable

The modules adopt a hard connection design for greater stability.

Magnetic Attachment & Quick-Lock Design

Magnetic attachment between the cabinet and modules for easier maintenance.

Quick-lock design between cabinets for faster installation.

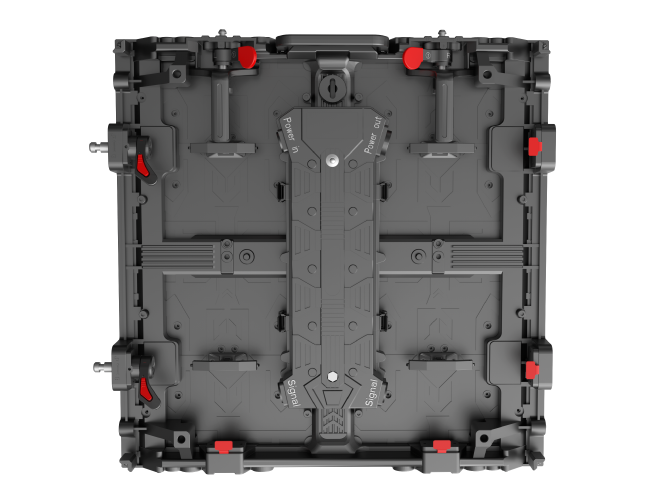

The rear panel is equipped with captive screws for flexible, multi-scenario applications.

Multiple applications

Specifications

Sunlit Max-S Series

ROC55-1P5VT（P）

ROC55-1P9VT（P）

Model
Pixel Pitch(mm)
Resolution
Panel Technology
Unit Weight(WxHxD)(mm)
Brightness(nits)
Contrast Ratio
Color Temperature(K)
Frame Rate(Hz)
Refresh Rate(Hz)
Working Voltage
Peak Power Consumption(W/m²)
Average Power Consumption(W/m²)
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)
Unit Weight(kg)

ROC55-1P5VT（P）
1.5625
320*320
COB
500 x 500 x 90
4000
1,000,000:1
7500（Adjustable）
60
3840/7680
AC：100~240V，50/60Hz
790
265
100,000
-10 ~ 50
10 ~ 90
12

ROC55-1P5VF
1.953
256*256
COB
500 x 500 x 90
4000
1,000,000:1
7500（Adjustable）
60
3840/7680
AC：100~240V，50/60Hz
790
265
100,000
-10 ~ 50
10 ~ 90
12

Related Downloads

Sunlit Max-S Series Outdoor COB Rental Panel

3.7MB

2025-10-27
