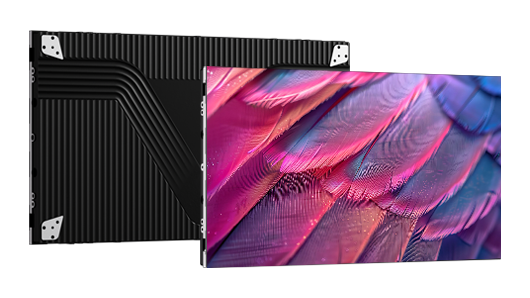

Iris-S Micro LED

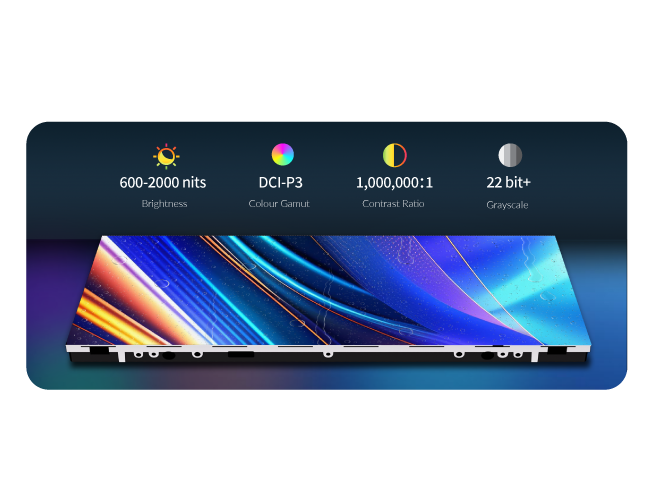

Excellent Picture Quality

Full Flip-Chip COB

Energy Saving

High Protection

Seamless Splicing

Cable Free Design

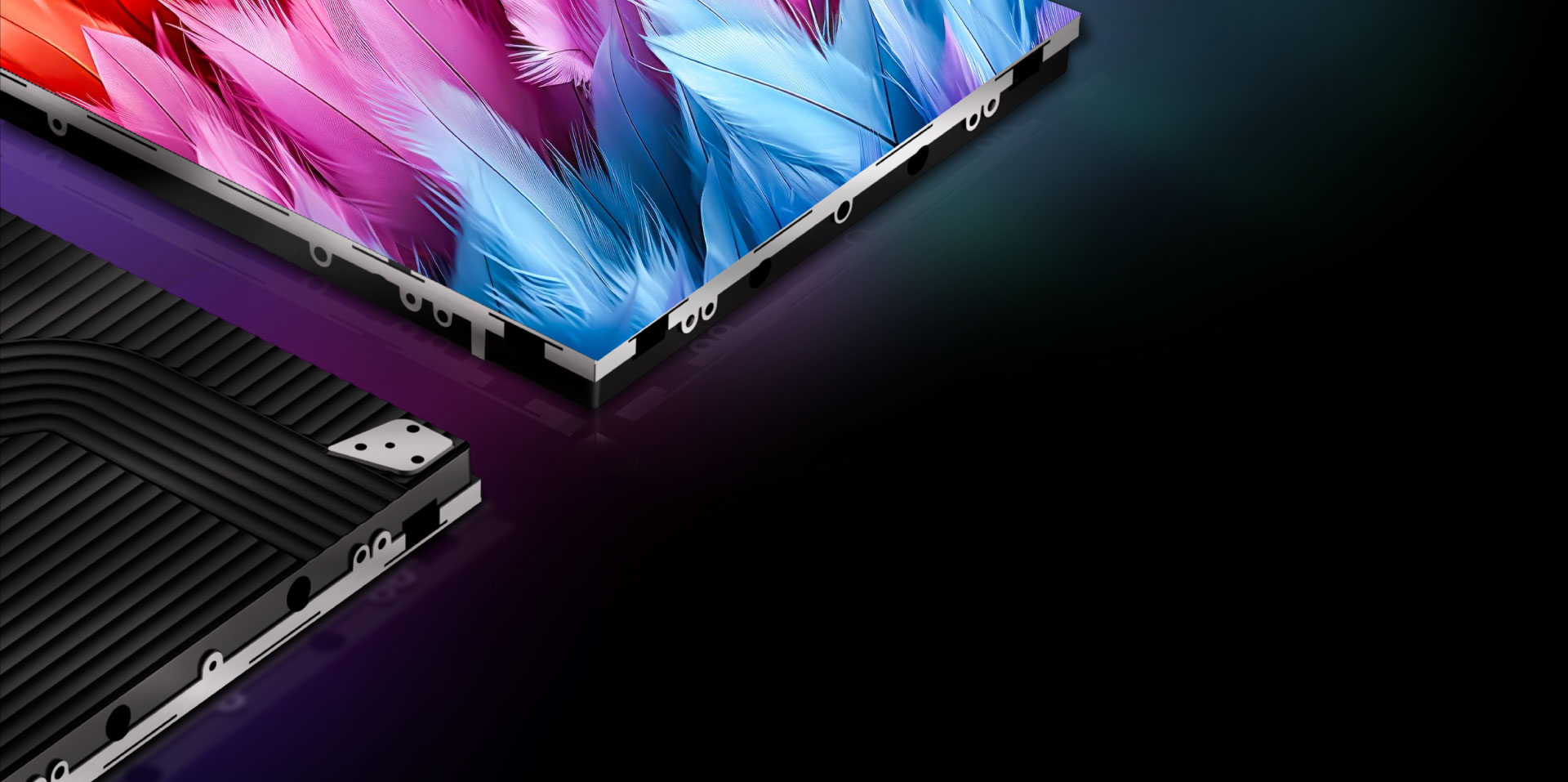

Amazing Compact and Streamlined Design

Ultra-thin 31mm cabinet, just 4.5kg in weight.

Customised Connector, Six-way Adjustment

The customized connectors combined with the magnets on the cabinet allow the module to adjust in three axes and six directions, ensuring a perfectly flat screen surface.

Flip-Chip COB Technology

Enjoy the unrivalled visual experience while providing strong protection against external impacts.

Brightness: 600-2000nits

Internationalized Universal 16:9 Aspect Ratio

Easily achieve FHD, UHD, FUHD large screen.

Dark as Ink, Smooth as a Mirror

The module adopts a matte black finish treatment, ensuring a uniform and consistent ink-like color.

Full Front Maintenance

No maintenance channel is required, saving installation space.

Specifications

Iris-S Series MicroLED

C63-09VT

C63-12VT

C63-12VTA

C63-15VTA

C63-18VTA

C63-12VTA（1）

C63-15VTA（1）

C63-18VTA（1）

C63-09VT（H）

C63-12VT（H）

C63-09VTP

C63-12VTP

C63-15VT（H）

C63-18VT（H）

Model
Pixel Pitch(mm)
Resolution
Panel Technology
Unit Size (W × H × D)
Surface Treatment
Brightness(nits)
Contrast Ratio
Colour Temperature(K)
Frame Rate(Hz)
Refresh Rate(Hz)
Working Voltage
Power Consumption Max(W/m²)
Power Consumption AVG (W/m²)
Viewing Angle(H./V.)
Lifetime(Hours)
Operating Temp(℃)
Humidity Range(%RH)
Unit Weight(kg)

C63-09VT
P0.9375
640*360
Full flip-chip COB
600*337.5*31mm
Matte black finish
600
≤1000000: 1
3000K~9300K
60
3840
AC: 100V~240V,50/60Hz
370
125
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-12VT
P1.25
480*270
Full flip-chip COB
600*337.5*31mm
Matte black finish
600
≤1000000: 1
3000K~9300K
60
3840
AC: 100V~240V,50/60Hz
320
110
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-12VTA
P1.25
480*270
Full flip-chip COB
600*337.5*31mm
Matte black finish
600
≤1000000: 1
3000K~9300K
60
3840
AC: 100V~240V,50/60Hz
350
120
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-15VTA
P1.5625
384*216
Full flip-chip COB
600*337.5*31mm
Matte black finish
600
≤1000000: 1
3000K~9300K
60
3840
AC: 100V~240V,50/60Hz
350
120
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-18VTA
P1.875
320*180
Full flip-chip COB
600*337.5*31mm
Matte black finish
550
≤1000000: 1
3000K~9300K
60
3840
AC: 100V~240V,50/60Hz
325
110
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-12VTA（1）
P1.25
480*270
Full flip-chip COB
600*337.5*31mm
Matte black finish
1000
≤1000000: 1
7500K(adjustable)
60
3840
AC: 100V~240V,50/60Hz
≤330
≤110
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-15VTA（1）
P1.5625
384*216
Full flip-chip COB
600*337.5*31mm
Matte black finish
1000
≤1000000: 1
7500K(adjustable)
60
3840
AC: 100V~240V,50/60Hz
≤310
≤105
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-18VTA（1）
P1.875
320*180
Full flip-chip COB
600*337.5*31mm
Matte black finish
1000
≤1000000: 1
7500K(adjustable)
60
3840
AC: 100V~240V,50/60Hz
≤450
≤150
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-09VT（H）
P0.9375
640*360
Full flip-chip COB
600*337.5*31mm
Matte black finish
2000
≤1000000: 1
7500K(adjustable)
60
3840
AC: 100V~240V,50/60Hz
≤480
≤160
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-12VT（H）
P1.25
480*270
Full flip-chip COB
600*337.5*31mm
Matte black finish
2000
≤1000000: 1
7500K(adjustable)
60
3840
AC: 100V~240V,50/60Hz
≤420
≤140
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-09VTP
P0.9375
640*360
Full flip-chip COB
600*337.5*31mm
Matte black finish
1200
≤1000000: 1
7500K(adjustable)
60
3840
AC: 100V~240V,50/60Hz
≤300
≤100
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-12VTP
P1.25
480*270
Full flip-chip COB
600*337.5*31mm
Matte black finish
1200
≤1000000: 1
7500K(adjustable)
60
3840/7680
AC: 100V~240V,50/60Hz
≤250
≤85
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-15VT（H）
P1.5625
384*216
Full flip-chip COB
600*337.5*31mm
Matte black finish
1500
≤1000000: 1
7500K(adjustable)
60
3840
AC: 100V~240V,50/60Hz
≤420
≤140
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

C63-18VT（H）
P1.875
320*180
Full flip-chip COB
600*337.5*31mm
Matte black finish
1500
≤1000000: 1
7500K(adjustable)
60
3840
AC: 100V~240V,50/60Hz
≤390
≤130
170°/170°
100000
-10 ~ +50
10 ~ 80
4.5

Related Downloads

IRIS-S Series (600-2000nits)

5.5MB

2025-09-09
