Sunlit-R Series

Magnetic Attachment

The magnetic attachment between the cabinet and modules

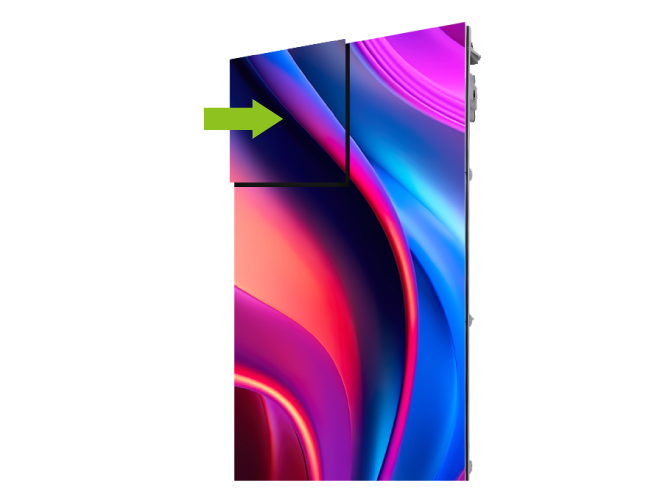

Front and rear maintenance

Support for front and rear maintenance, different maintenance methods can be selected according to different application scenarios.

90° right angle splicing

The Sunlit Max Series supports 90° splicing, bringing creative display ideas to life.

High Brightness

4500nits

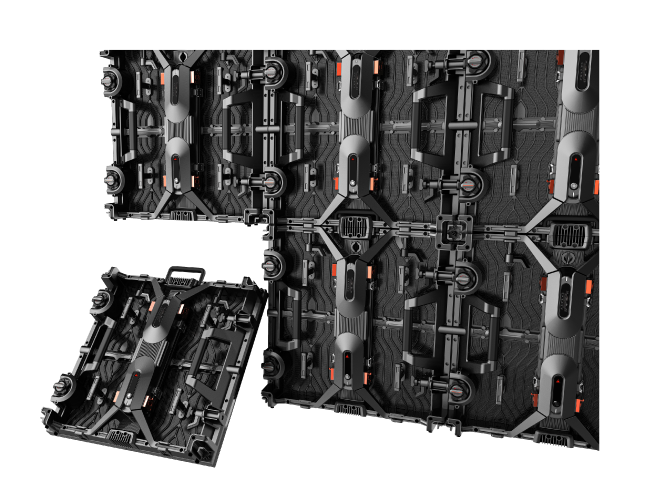

Two Cabinet Sizes, Creative Splicing Options

Available in 500x500mm and 500x1000mm cabinet sizes, the series supports mixed splicing between the two.
It also supports right-angle and curved splicing for limitless creative possibilities.

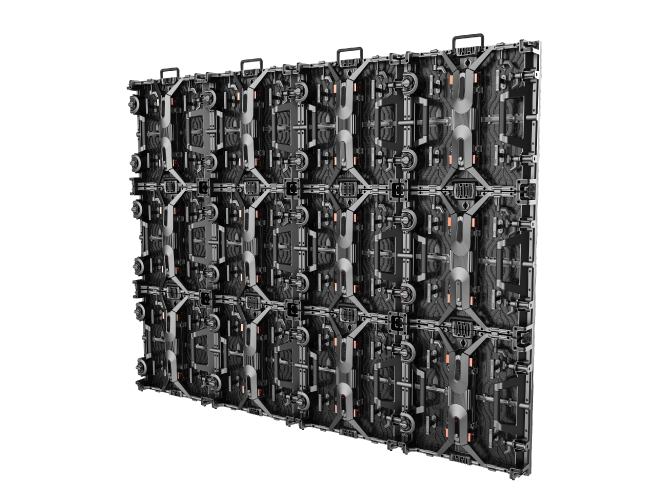

Hard Connection Design, Durable & Stable

The modules feature a hard connection design for greater stability.

Magnetic Attachment, Easy Maintenance

Innovative magnetic attachment design ensures stable performance and simplifies installation and maintenance.

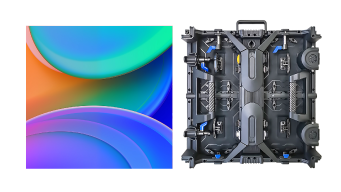

Robust Material, Superior Flatness

Constructed with ADC12 high-strength die-cast aluminum cabinets, the series achieves enhanced flatness for flawless display performance.

Front & Rear Maintenance, Unlimited Flexibility

The series supports both front and rear maintenance, making installation and servicing more convenient.

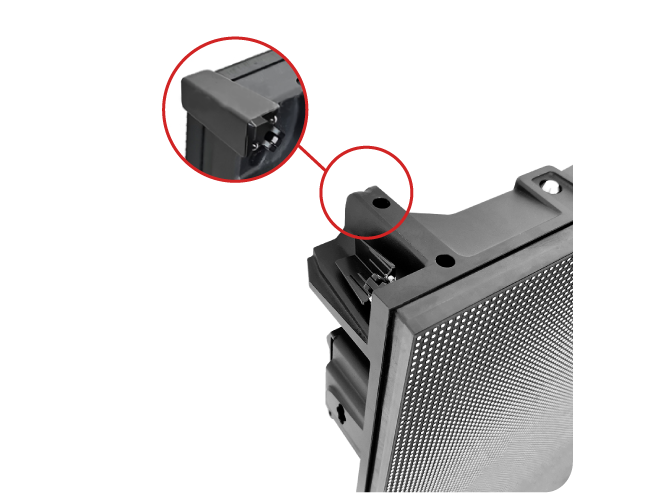

Upgraded Corner Protectors, Safety for Modules

Foldable corner guards provide all-round protection, keeping modules safe from impact.

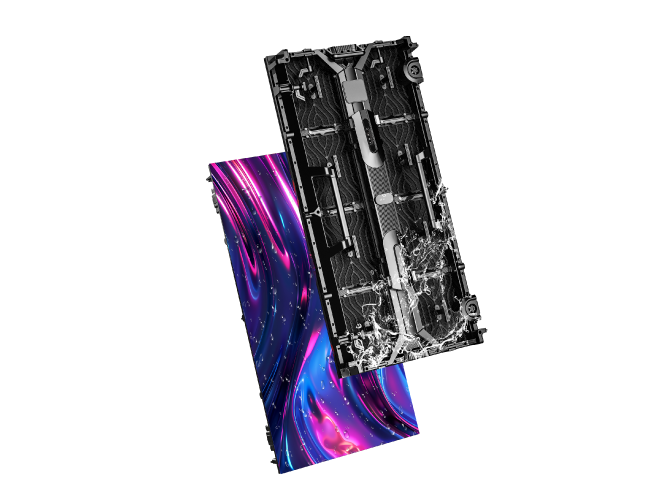

IP65 Rating, Outdoor Ready

The fully enclosed cabinet with an IP65 rating ensures stable outdoor performance in any weather.

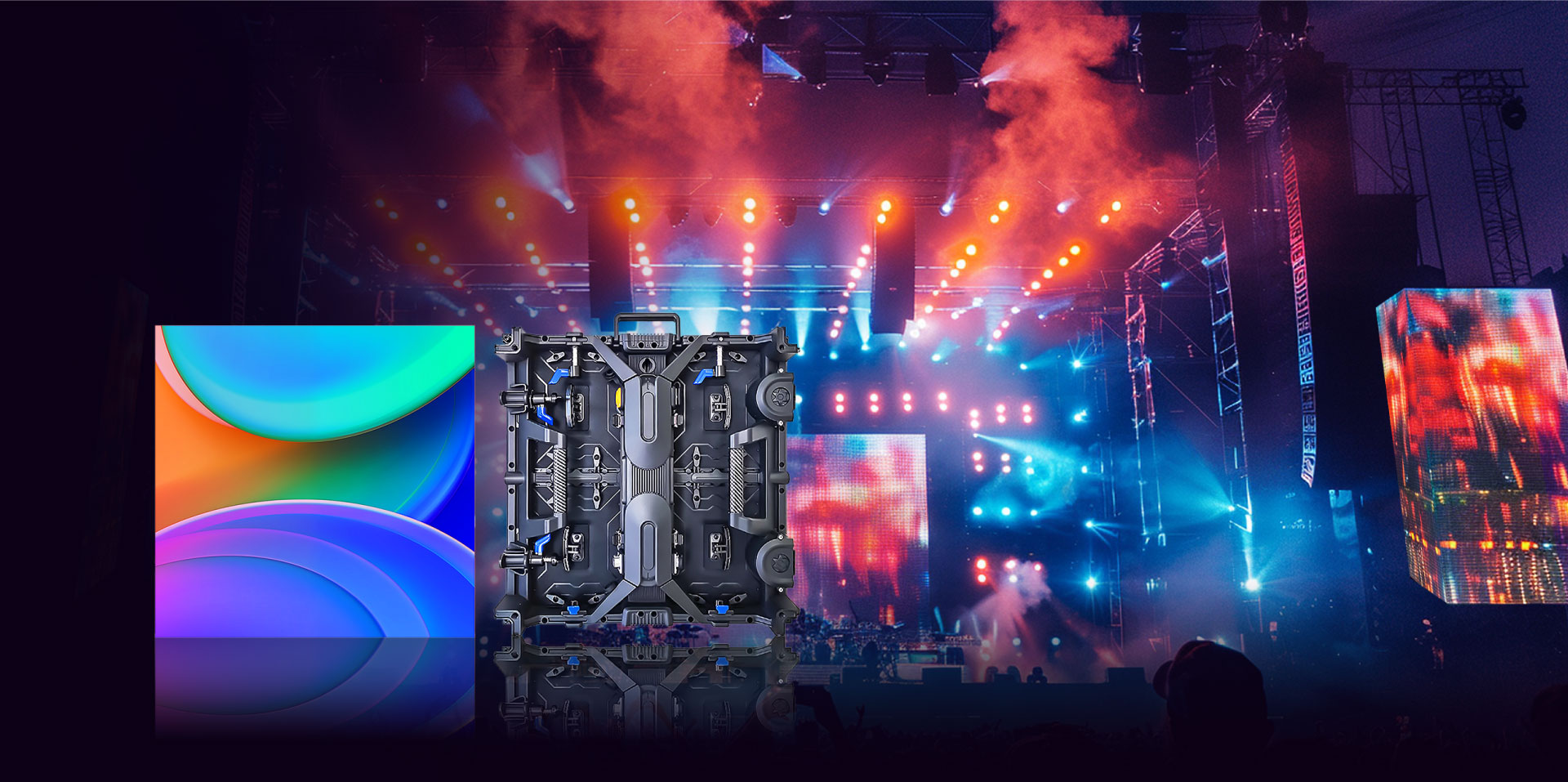

Multiple applications

Specifications

Sunlit-R Series

RU55-2P6VQ

RU55-2P9VQ

RU55-3P9VQ

RO55-2P6VQ

RO55-2P9VQ

RO55-3P9VQ

Model
Application Scenarios
Pixel Pitch(mm)
Resolution
Panel Technology
Unit Size(W x H x D)(mm)
Module Size(W x H)(mm)
Brightness(nits)
Contrast Ratio
Color Temperature(K)
Frame Rate(Hz)
Refresh Rate(Hz)
Working Voltage
Peak Power Consumption(W/m²)
Average Power Consumption(W/m²)
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)
Unit Weight(kg)

RU55-2P6VQ
Idoor
P2.604
96*96
SMD
500 x 500 x 90 / 500 x 1000 x 90
250 x 250
600
5000：1
3200~12000（Adjustable）
60
3840
AC：100~240V，50/60Hz
≤600
≤200
100,000
-10 ~ 50
10 ~ 80
7.5/13

RU55-2P9VQ
Indoor
P2.976
84*84
SMD
500 x 500 x 90 / 500 x 1000 x 90
250 x 250
600
5000：1
3200~12000（Adjustable）
60
3840
AC：100~240V，50/60Hz
≤600
≤200
100,000
-10 ~ 50
10 ~ 80
7.5/13

RU55-3P9VQ
Indoor
P3.91
64*64
SMD
500 x 500 x 90 / 500 x 1000 x 90
250 x 250
600
5000：1
3200~12000（Adjustable）
60
3840
AC：100~240V，50/60Hz
≤600
≤200
100,000
-10 ~ 50
10 ~ 80
7.5/13

RO55-2P6VQ
Outdoor
P2.604
96*96
SMD
500 x 500 x 90 / 500 x 1000 x 90
250 x 250
4500
5000：1
3200~12000（Adjustable）
60
3840
AC：100~240V，50/60Hz
≤800
≤240
100,000
-20 ~ 50
10 ~ 90
7.5/13

RO55-2P9VQ
Outdoor
P2.976
84*84
SMD
500 x 500 x 90 / 500 x 1000 x 90
250 x 250
4500
5000：1
3200~12000（Adjustable）
60
3840
AC：100~240V，50/60Hz
≤800
≤240
100,000
-20 ~ 50
10 ~ 90
7.5/13

RO55-3P9VQ
Outdoor
P3.91
64*64
SMD
500 x 500 x 90 / 500 x 1000 x 90
250 x 250
4500
5000：1
3200~12000（Adjustable）
60
3840
AC：100~240V，50/60Hz
≤800
≤240
100,000
-20 ~ 50
10 ~ 90
7.5/13

Related Downloads

Sunlit-R Series LED Rental Panel

2MB

2025-10-17
