LCD Education All-in-One Display

Android 11.0

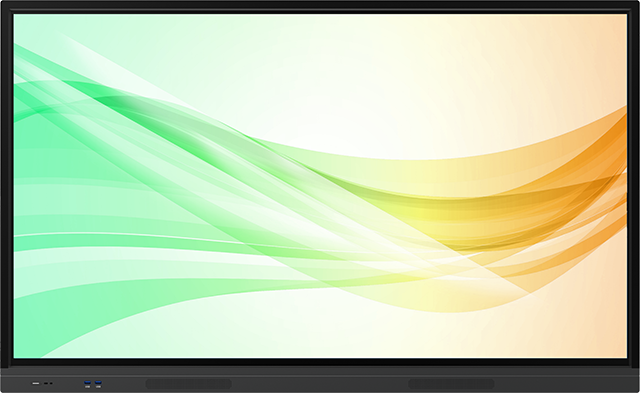

Ultra-narrow bezel

Scan the QR code

Split-screen multitasking

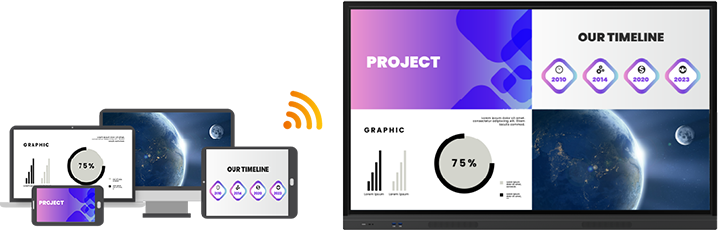

Wireless screen casting, unlimited sharing

Support mobile phones, tablets, computers and other terminals to cast screens wirelessly across systems, allowing up to 4 screens to be displayed simultaneously.

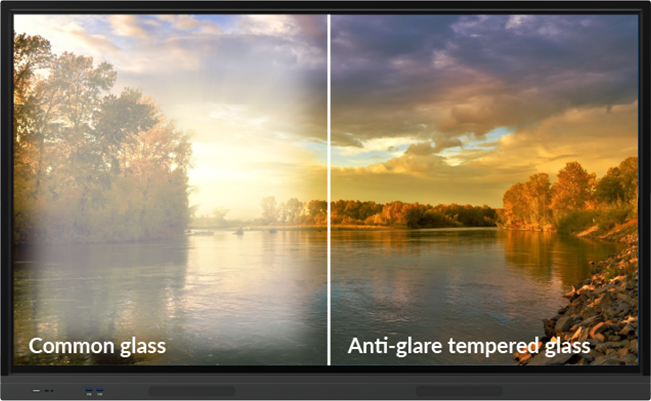

Anti-glare tempered glass

With 4mm high-strength anti-glare toughened glass, it effectively reduces scratches from long-term use, resists the effects of high light exposure in the conference environment and gives you a high-definition and detailed display.

Smart writing at your fingertips

Support two pens writing at the same time with a two-colour display, making it easier for multiple people to collaborate. Support convenient operations such as gesture erasure and drag-and-drop navigation, effectively improving meeting efficiency.

Specifications

LCD Education All-in-One

SR55LCDVA-U

SR65LCDVA-U

SR75LCDVA-U

SR86LCDVA-U

Model
Panel Size
Backlight Category
Bare Dimension(W x H x Dmm)
Power Consumption(W)
Speakers Power
System
Optimum Resolution
Viewing Angle
Brightness(cd/m²)
Contrast Ratio
Response Time(ms)
Operating Voltage
Operating Temp(°C)
Humidity Range
Front Port
Input/Output

SR55LCDVA-U
55”
DLED
1263*776.8*87.6
330
2*16W
Android 11.0
3840*2160
178°
350
1200:1
8
Built-in 1300W pixel camera
100 ~ 240V，50/60Hz
-10 ~ 50
10% ~ 80%RH
USB3.0 x 2
HDMI IN x 2,OPTICAL OUT x 2,USB3.0 x 1,USB2.0 x 1,TOUCH x 1,
VGA IN x 1,AUDIO IN x 1,MIC IN x 1,RS232 x 1,RJ45 IN x 1,LINE OUT x 1

SR55LCDVA-U
65”
DLED
1484.6*903.08*87.21
400
2*16W
Android 11.0
3840*2160
178°
350
1200:1
8
Built-in 1300W pixel camera
100 ~ 240V，50/60Hz
-10 ~ 50
10% ~ 80%RH
USB3.0 x 2
HDMI IN x 2,OPTICAL OUT x 2,USB3.0 x 1,USB2.0 x 1,TOUCH x 1,
VGA IN x 1,AUDIO IN x 1,MIC IN x 1,RS232 x 1,RJ45 IN x 1,LINE OUT x 1

SR75LCDVA-U
75”
DLED
1706.76*1027.32*87.31
400
2*16W
Android 11.0
3840*2160
178°
350
1200:1
8
Built-in 1300W pixel camera
100 ~ 240V，50/60Hz
-10 ~ 50
10% ~ 80%RH
USB3.0 x 2
HDMI IN x 2,OPTICAL OUT x 2,USB3.0 x 1,USB2.0 x 1,TOUCH x 1,
VGA IN x 1,AUDIO IN x 1,MIC IN x 1,RS232 x 1,RJ45 IN x 1,LINE OUT x 1

SR86LCDVA-U
86”
DLED
1952.96*1167.77*87.18
550
2*16W
Android 11.0
3840*2160
178°
350
1200:1
8
Built-in 1300W pixel camera
100 ~ 240V，50/60Hz
-10 ~ 50
10% ~ 80%RH
USB3.0 x 2
HDMI IN x 2,OPTICAL OUT x 2,USB3.0 x 1,USB2.0 x 1,TOUCH x 1,
VGA IN x 1,AUDIO IN x 1,MIC IN x 1,RS232 x 1,RJ45 IN x 1,LINE OUT x 1

Related Downloads

LCD Education All-in-One

5.3MB

2023-04-17
