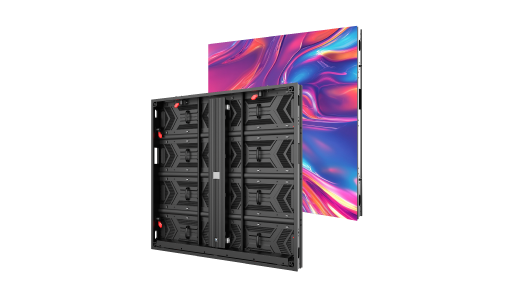

UBO Series Outdoor LED Panel

UBO Series
Outdoor LED Panel

Slim and lightweight

The UBO series features a thickness of 90mm and a weight of 23kg, making it 20% lighter and 25% thinner than traditional outdoor LED cabinets.

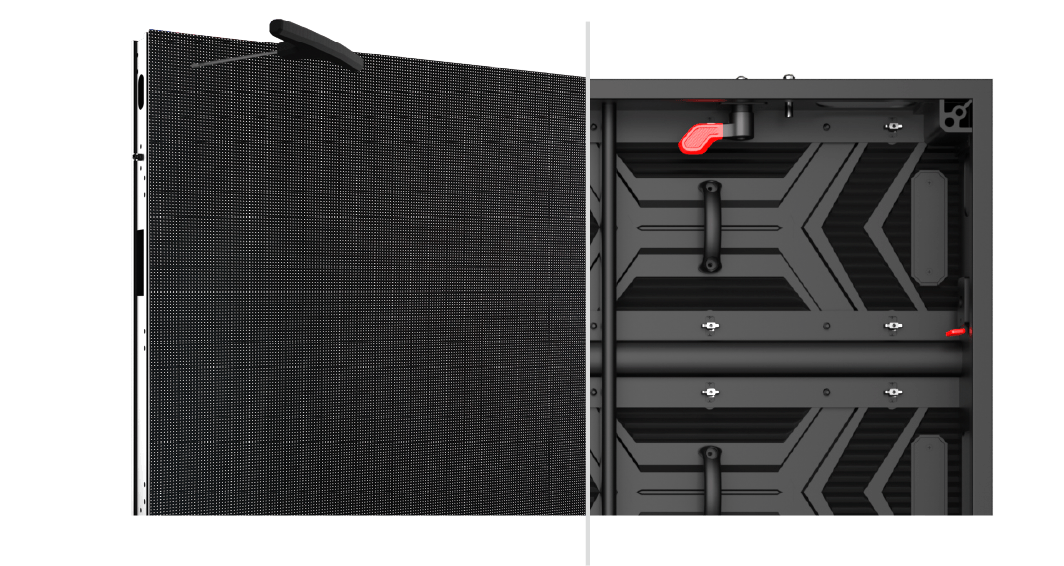

Front or rear maintenance

Front Maintenance: Use a removal tool to rotate the module locks from the front to remove modules. Rear Maintenance: Directly rotate the module locks from the rear to remove modules.

Stable and durable

Adopting sturdy aluminium profile cabinets, the modules undergo waterproof treatment, achieving an IP65 protection level to withstand harsh outdoor conditions such as strong winds and heavy rain.

Captivating visuals in any light

Let your content shine with UBO's high brightness, contrast, and refresh rates. Whether it's the blazing sun or the darkest night, your visuals will captivate your audience with unparalleled brilliance.

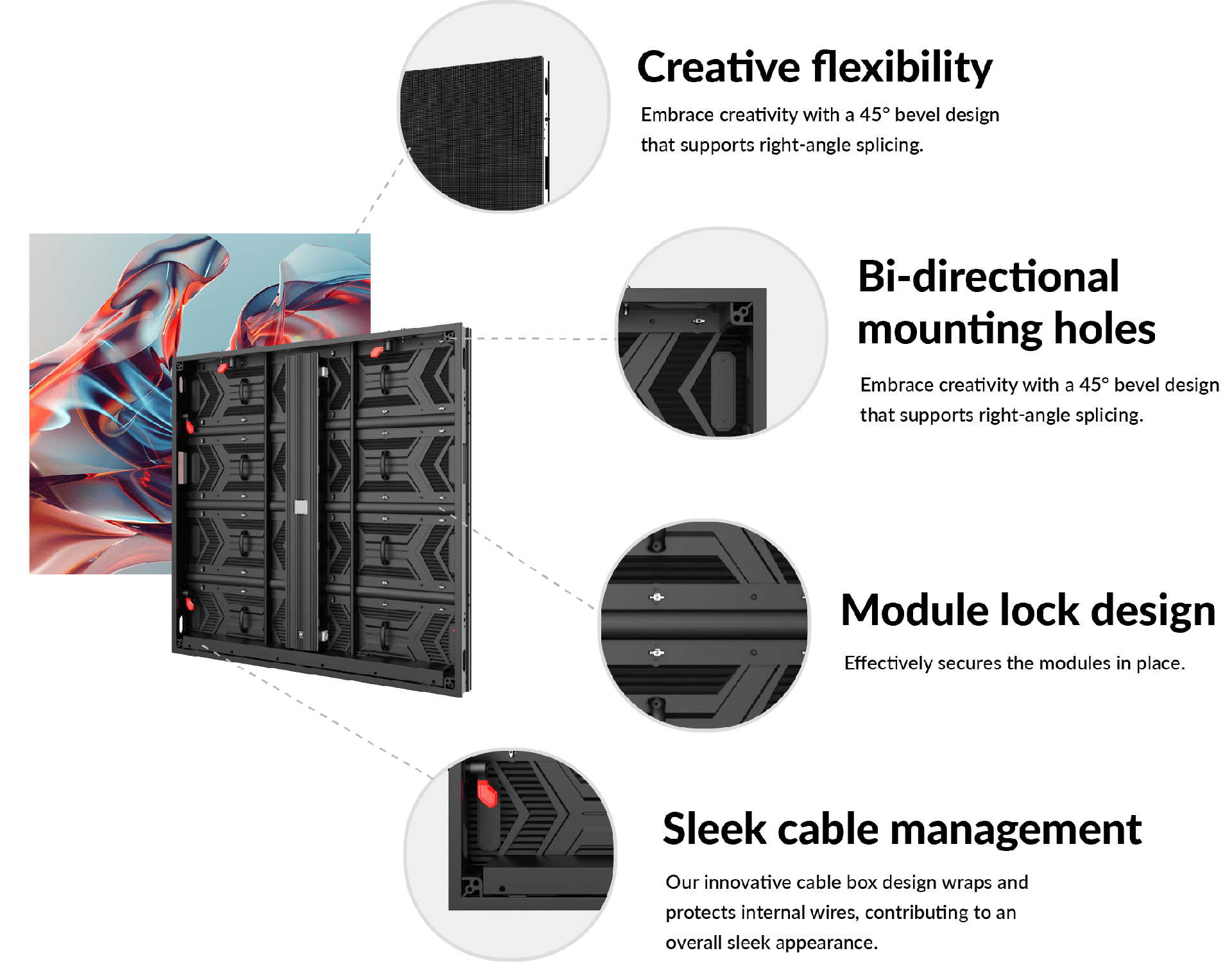

Cabinet structure with special design, fast installation and maintenance

Specifications

UBO Series

DAA-3P9VA

DAA-4P8VA

DAA-6P2VA

DAA-7P8VA

DAA-10P4VA

Model
Pixel Pitch(mm)
Resolution
Cabinet Size(W x H x Dmm)
Module Size(W x H) (mm)
Cabinet Weight (kg)
IP Rate
Brightness(nits = cd/m²)
Contrast Ratio
Frame Rate(Hz)
Refresh Rate(Hz)
Colour Temperature(K)
Viewing Angle(H./V.)
Peak Power Consumption(W/m²)
Average Power Consumption(W/m²)
Working Voltage
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)

DAA-3P9VA
P3.91
256*256
1000 x 1000 x 90
500 x 250
23
IP65
5000
8000:1
60
3840
3000~9300(adjustable)
140°/120°
700
235
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

DAA-4P8VA
P4.81
208*208
1000 x 1000 x 90
500 x 250
23
IP65
5500
8000:1
60
3840
3000~9300(adjustable)
140°/120°
700
235
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

DAA-6P2VA
P6.25
160*160
1000 x 1000 x 90
500 x 250
23
IP65
5500
8000:1
60
3840
3000~9300(adjustable)
140°/120°
800
250
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

DAA-7P8VA
P7.81
128*128
1000 x 1000 x 90
500 x 250
23
IP65
5800
8000:1
60
3840
3000~9300(adjustable)
140°/120°
800
250
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

DAA-10P4VA
P10.41
96*96
1000 x 1000 x 90
500 x 250
23
IP65
6000
8000:1
60
3840
3000~9300(adjustable)
140°/120°
800
250
AC: 100V~240V,50/60Hz
100000
-20~50
10~90
