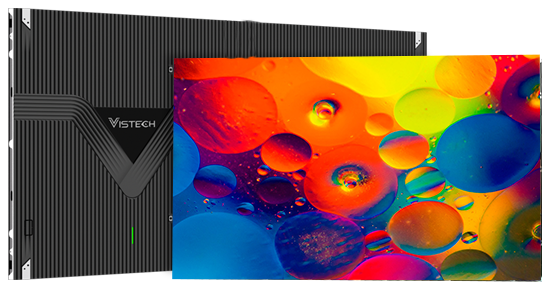

43” Discovery Pro Series LED Standard Panel

43” Discovery Pro Series

LED Standard Panel

- Perfect Replacement for LCD Video Walls

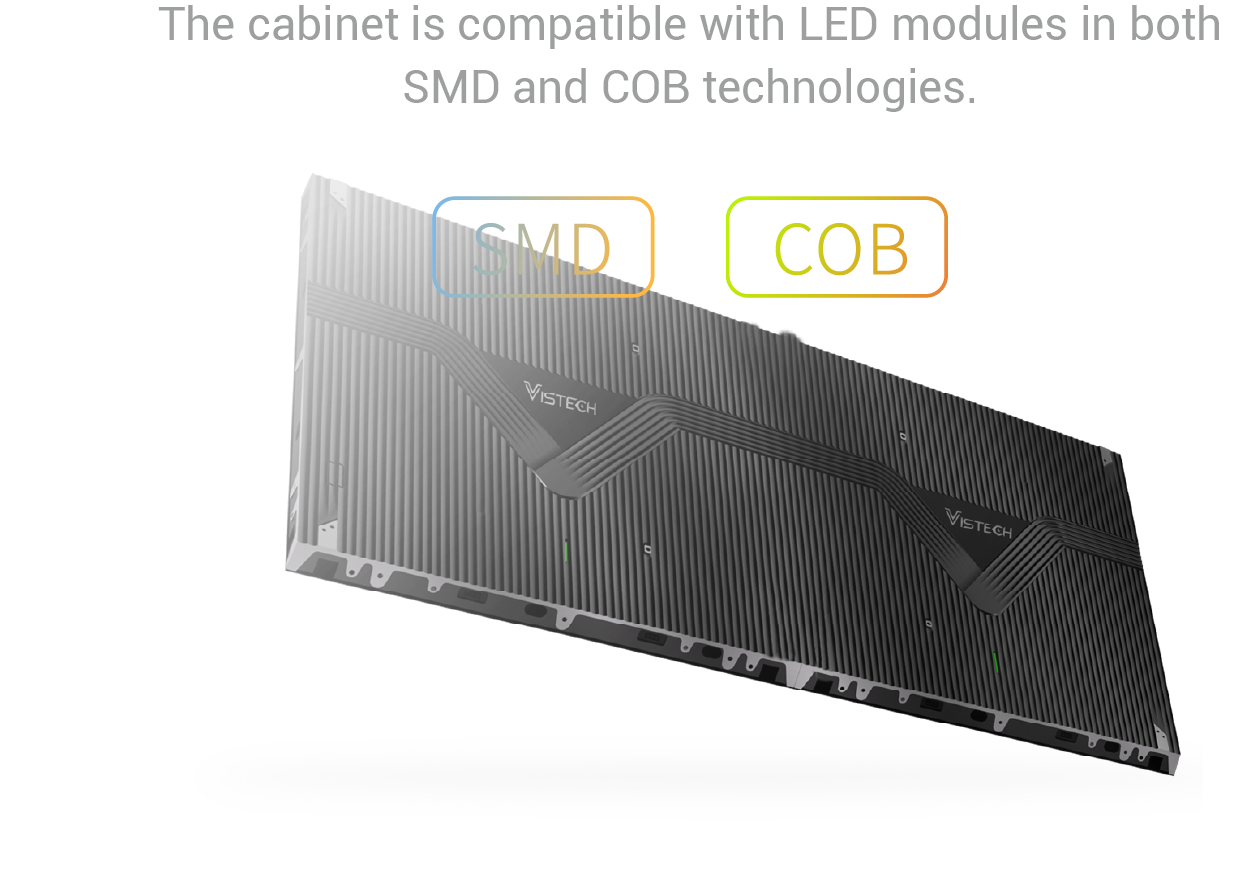

Full range of compatible design

Bi-directional holes on all four corners

The four corners of the cabinet have bi-directional mounting holes, allowing for fixed installation from both the front and rear, making it suitable for a variety of installation scenarios. The back of the cabinet has VESA holes to support the assembly of VESA mounts.

Dual backup of power supply and receiving card

In the event of a failure of the main receiving card or power supply, the backup system will automatically switch over to ensure that the display is not interrupted, providing stronger stability and reliability for the large-screen display.

Perfect replacement for LCDs

Completely replace traditional 43" LCD splicing screens without changing the original installation structure, giving you a seamless display and more realistic colours.

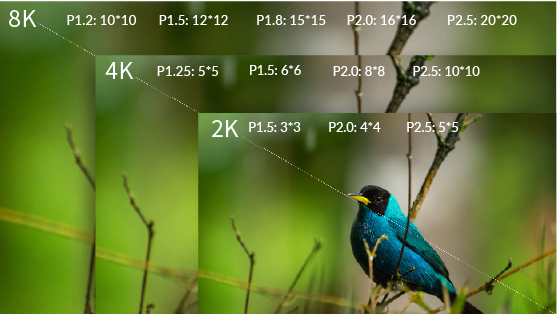

Standardized ratios for easy display of UHD/FUHD images

Combining the international standard 16:9 aspect ratio with the large-size panel design, the standard resolution of HD, UHD, or FUHD can be easily achieved with just a few panels.

Front maintenance
Lightweight design
Light board flash

Customised connector, six-way adjustment

Adopting customised connectors to connect the cabinet to the module, the module can be adjusted in six directions,
giving the screen superb flatness and making the visual effect guaranteed.

Thickness

39mm
Weight

11KG

Large size, slim design, endless possibilities

The structure and materials of the cabinet are specially weight-reduced to achieve an ultra-light weight of 11 kg per cabinet, bringing great convenience for transport and installation.

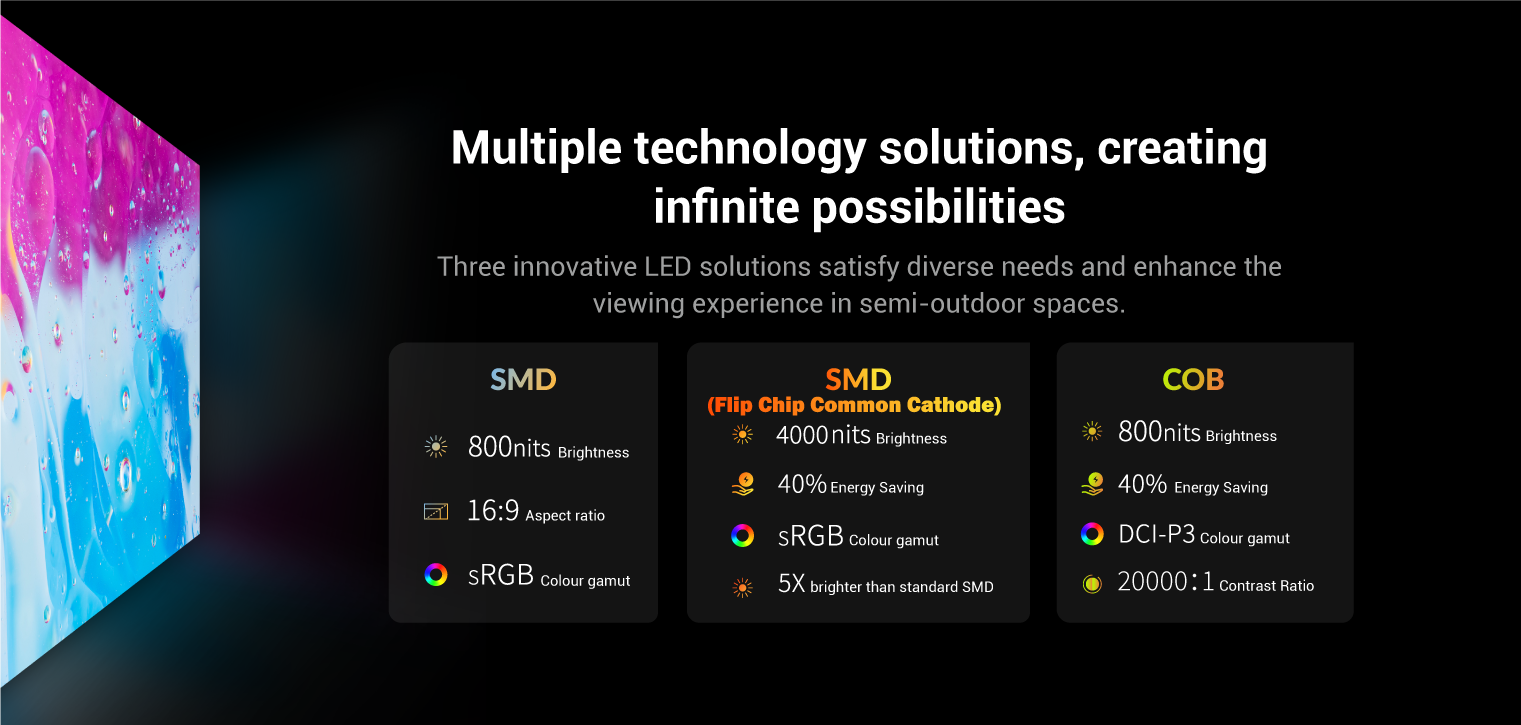

Common cathode design for low power consumption

A common cathode design allows the Discovery Pro series to reduce thermal energy conversion, lower screen temperature, and achieve 40% energy savings while extending screen service life.

43" Discovery Pro Series

Specifications

C95-09VA

C95-12VA

U95-09VA

U95-12VA

U95-15VA

U95-18VA

U95-20VA

U95-25VA

U95-12VH

U95-15VH

U95-18VH

Model
Pixel Pitch(mm)
Unit Size(W × H × D) (mm)
Resolution
Panel Technology
Brightness(nits)
Contrast Ratio
Color Temperature
Frame Rate(Hz)
Refresh Rate(Hz)
Working Voltage
Power Consumption Max(W/m²)
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)
Cabinet Weight (kg)

C95-09VA
P0.9
960*540*39
1024*576
COB
800
1000000:1
3000K±~9300K(adjustable)
60
3840
AC:100~240V, 50/60Hz
500
100000
-10 ~ 50
10 ~ 80
11

C95-12VA
P1.2
960*540*39
768*432
COB
800
1000000:1
3000K±~9300K(adjustable)
60
3840
AC:100~240V, 50/60Hz
480
100000
-10 ~ 50
10 ~ 80
11

U95-09VA
P0.9
960*540*39
1024*576
IMD 4 in 1
800
4000:1
3000K±~9300K(adjustable)
60
3840
AC:100~240V, 50/60Hz
600
100000
-10 ~ 50
10 ~ 80
11

U95-12VA
P1.2
960*540*39
768*432
SMD
600
4000:1
3000K±~9300K(adjustable)
60
3840
AC:100~240V, 50/60Hz
600
100000
-10 ~ 50
10 ~ 80
11

U95-15VA
P1.5
960*540*39
640*360
SMD
600
4000:1
3000K±~9300K(adjustable)
60
3840
AC:100~240V, 50/60Hz
600
100000
-10 ~ 50
10 ~ 80
11

U95-18VA
P1.8
960*540*39
512*288
SMD
800
4000:1
3000K±~9300K(adjustable)
60
3840
AC:100~240V, 50/60Hz
500
100000
-10 ~ 50
10 ~ 80
11

U95-20VA
P2.0
960*540*39
480*270
SMD
800
4000:1
3000K±~9300K(adjustable)
60
3840
AC:100~240V, 50/60Hz
500
100000
-10 ~ 50
10 ~ 80
11

U95-25VA
P2.5
960*540*39
384*216
SMD
750
4000:1
3000K±~9300K(adjustable)
60
3840
AC:100~240V, 50/60Hz
500
100000
-10 ~ 50
10 ~ 80
11

U95-12VH
P1.2
960*540*39
768*432
Flip Chip SMD (high-bright)
4000
20000:1
3000K±~9300K(adjustable)
60
3840
AC:100~240V, 50/60Hz
980
100000
-10 ~ 50
10 ~ 80
11

U95-15VH
P1.5
960*540*39
640*360
Flip Chip SMD (high-bright)
3500
20000:1
3000K±~9300K(adjustable)
60
3840
AC:100~240V, 50/60Hz
980
100000
-10 ~ 50
10 ~ 80
11

U95-18VH
P1.8
960*540*39
512*288
Flip Chip SMD (high-bright)
3500
20000:1
3000K±~9300K(adjustable)
60
3840
AC:100~240V, 50/60Hz
980
100000
-10 ~ 50
10 ~ 80
11
