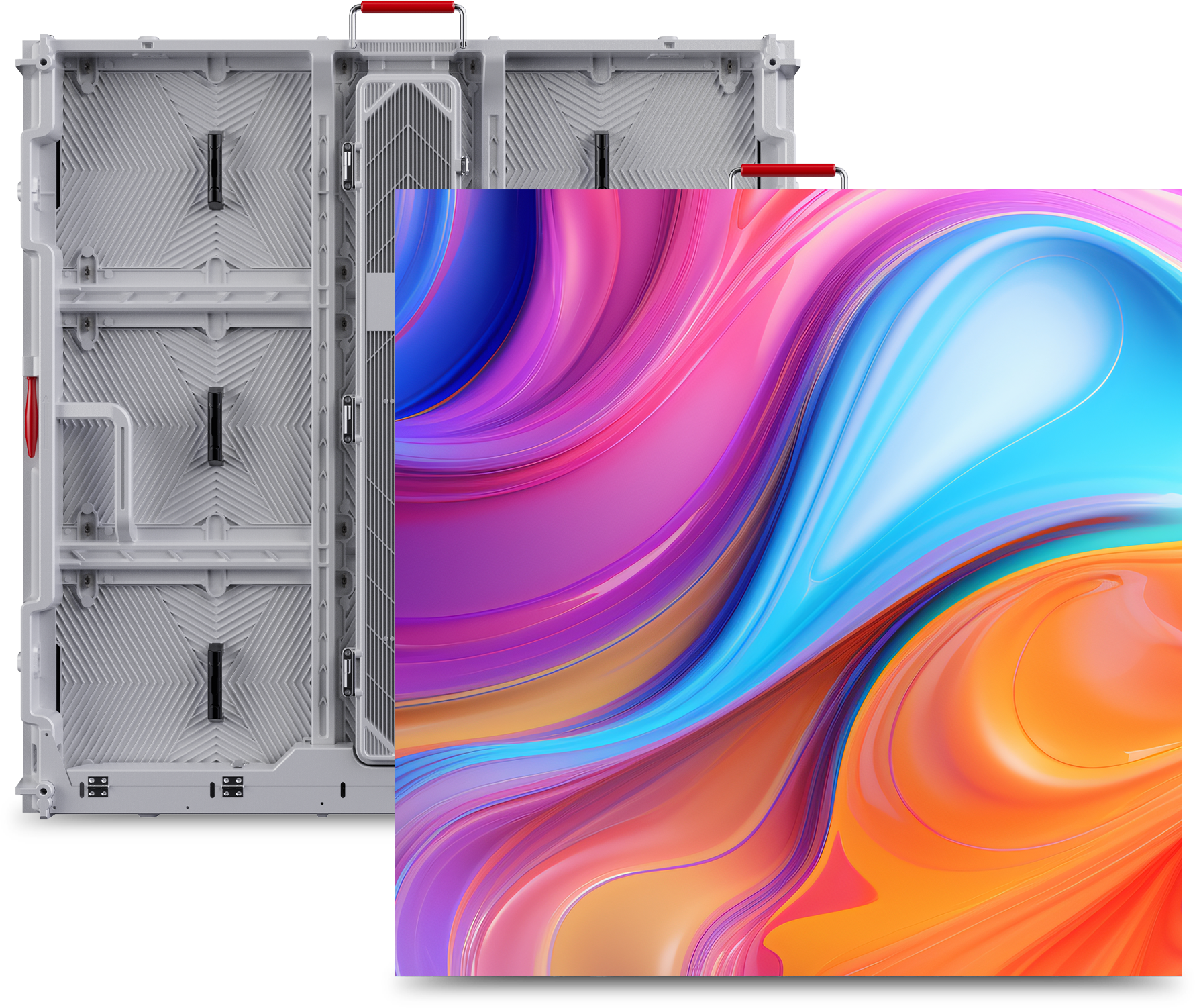

NSO Series Outdoor LED Panel

NSO Series
Outdoor LED Panel

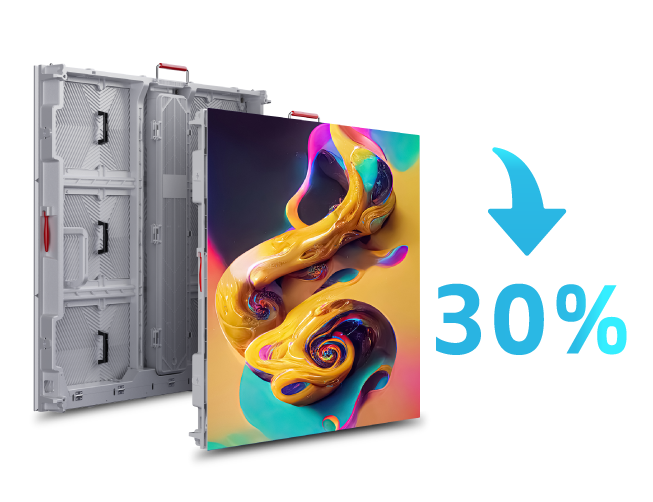

Slim, compact and strong

Aluminium profile cabinet, 82.3mm thickness, 29kg weight.
20% lighter and 30% thinner than traditional LED outdoor cabinets.

Lifelike images and true-to-life colours

The NSO series is suitable for outdoor displays with high brightness and high contrast,
even in bright light conditions, the display is still clear and bright.

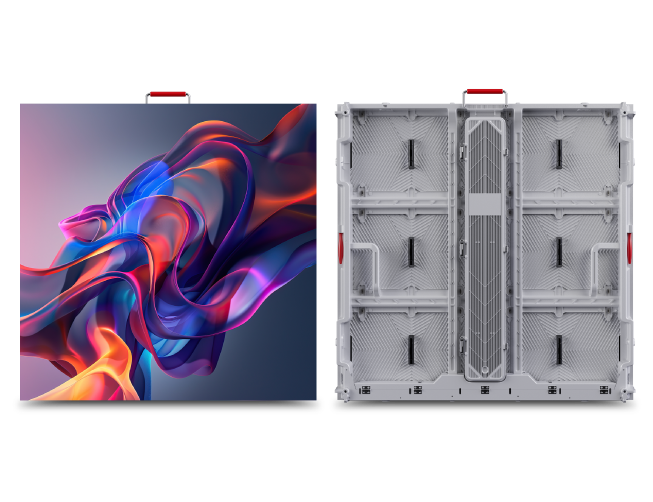

Exquisite, flat and seamless

High-strength aluminium alloy for a perfect fit, high flatness, aesthetics and durability.

High efficiency, energy saving and low power consumption

With dual voltage power supply technology, the NSO Seris is 40% more energy efficient than traditional outdoor LED displays.

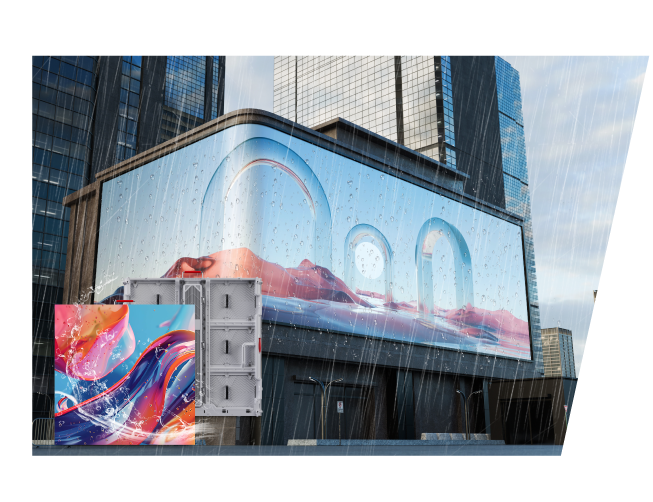

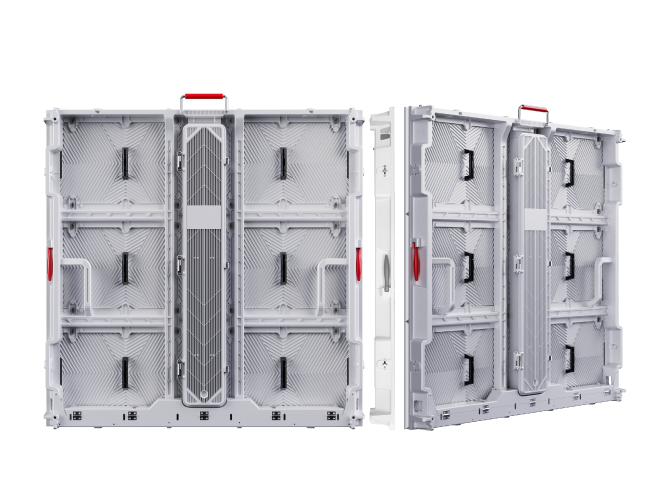

Robust and stable

The aluminium profile cabinet is robust and rust-proof, which reduces the failure rate of the module and extends its service life.
With IP65 protection and excellent resistance to shock and wind, the NSO Series can ensure reliable performance in any difficult environments.

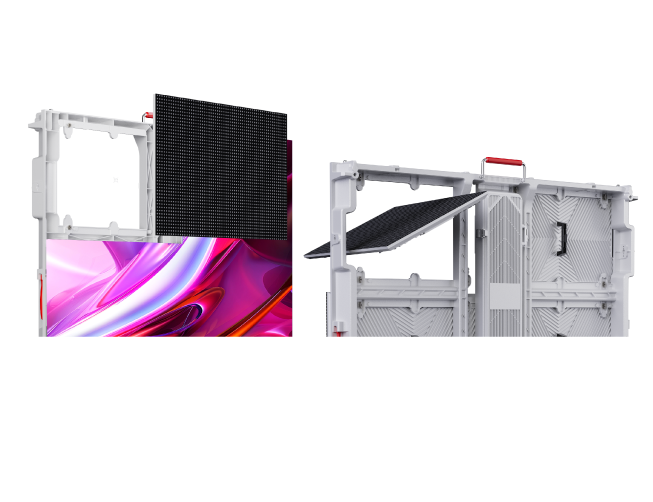

Front or rear maintenance & spring-loaded buckle design

Front or rear maintenance cabinet and spring-loaded buckle design for easy installation and maintenance.

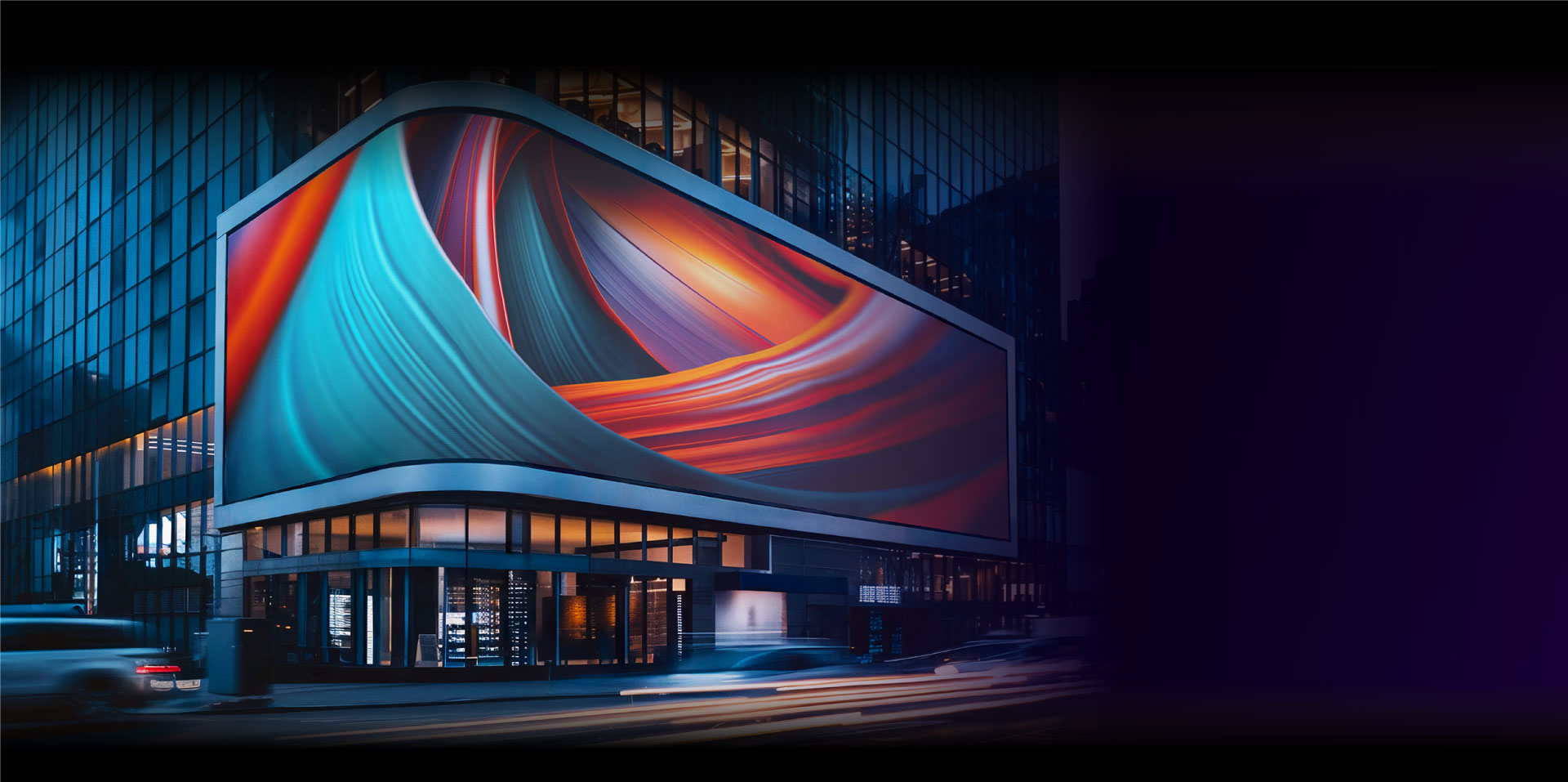

Multiple applications

Billboard

Outdoor Performance

Shopping Mall

Commercial Center

Specifications

NSO Series

D99-4PVB

D99-5PVB

D99-5P7VB

D99-6P6VB

D99-8PVB

D99-10PVB

Model
Pixel Pitch(mm)
Resolution
Cabinet Size(W x H x Dmm)
Module Size(W x H x D) (mm)
Cabinet Weight (kg)
IP Rate
Brightness(nits = cd/m²)
Contrast Ratio
Frame Rate(Hz)
Refresh Rate(Hz)
Colour Temperature(K)
Viewing Angle(H./V.)
Peak Power Consumption(W/m²)
Average Power Consumption(W/m²)
Working Voltage
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)

D99-4PVB
P4
240*240
960x960x82.3
480x320
29
IP65
4500
8000:1
60
3840
3000~9300(adjustable)
160°/140°
580
195
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

D99-5PVB
P5
192*192
960x960x82.3
480x320
29
IP65
5000~7000
8000:1
60
3840
3000~9300(adjustable)
160°/140°
580
195
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

D99-5P7VB
P5.71
168*168
960x960x82.3
480x320
29
IP65
5000~8000
8000:1
60
3840
3000~9300(adjustable)
160°/140°
580
195
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

D99-6P6VB
P6.67
144*144
960x960x82.3
480x320
29
IP65
5000~8000
8000:1
60
3840
3000~9300(adjustable)
160°/140°
580
195
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

D99-8PVB
P8
120*120
960x960x82.3
480x320
29
IP65
4500~8000
8000:1
60
3840
3000~9300(adjustable)
160°/140°
580
195
AC: 100V~240V,50/60Hz
100000
-20~50
10~90

D99-10PVB
P10
96*96
960x960x82.3
480x320
29
IP65
5500~8000
8000:1
60
3840
3000~9300(adjustable)
160°/140°
580
195
AC: 100V~240V,50/60Hz
100000
-20~50
10~90
