Glory Series Outdoor LED Panel

Easy installation increases efficiency

Spring screws are used inside and between the cabinets, making installation and maintenance more convenient.

Double waterproofing

Runway-type waterproof ring for double waterproofing.

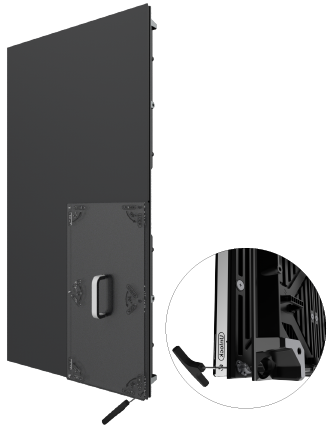

Easy maintenance

Hole alignment aid in quickly locating mounting holes and facilitate module removal and assembly.

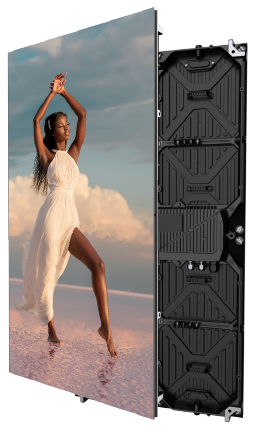

Easy installation

The magnet design on the back of the module makes it easy to attach the module to the cabinet for easy installation.

Specifications

Glory Series

D5A-6P9VA

D5A-10PVA

Model
Pixel Pitch(mm)
Resolution
Panel Dimensions (W x H x D) (mm)
Module Size(mm)
Cabinet Weight (kg)
IP Rate
Brightness(nits = cd/m²)
Contrast Ratio
Colour Temperature(K)
Refresh Rate(Hz)
Frame Frequency(Hz)
Viewing Angle(H./V.)
Average Power Consumption(W/m²)
Peak Power Consumption(W/m²)
Working Voltage
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)

D5A-6P9VA
P6.94
72*144
500x1000x65
250x500
11.5
IP65
6500 ~ 8000
8000:1
3000K~9300K(adjustable)
3840
60
160°/140°
220
650
AC：100V ~ 240V, 50/60Hz
100000
-20 ~ 50
10 ~ 90

D5A-10PVA
P10.41
48*96
500x1000x65
250x500
11.5
IP65
6500 ~ 8000
8000:1
3000K~9300K(adjustable)
3840
60
160°/140°
220
650
AC：100V ~ 240V, 50/60Hz
100000
-20 ~ 50
10 ~ 90

Related Downloads

Glory Series Outdoor LED Panel

0.8MB

2023-04-17
