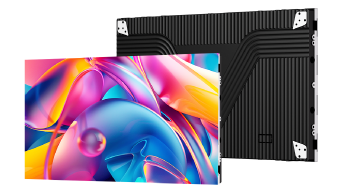

Sunlit Plus Series

Sunlit Plus Series
LED Rental Panel

Two cabinets, any splicing

The Sunlit Plus series is available in both long and short cabinet sizes. The two cabinets can not only be used individually but can also be combined, providing the flexibility to choose different cabinets for fitting according to the needs of the scenario.

Hardwired power box design

The power box is hard-wired for quick disassembly and easy maintenance.

Corner protection design

The cabinet is protected from bumps by foldable corner protectors around the corners of the screen.

High quality die-cast aluminium

Adopting die-cast aluminium, the cabinet is robust and durable, effectively ensuring the flatness of the screen surface.

Customisable curved enclosure

The Sunlit Plus series supports a customised enclosure design, allowing for easy internal and external arc splicing without the need for an internal arc lock.

Custom structure, assembly without worry

Designed with handles, the cabinet is not only easy to install and dismantle with a single person but can also be used to fix the cabinet between the top and bottom, making it safer and more reliable.
The Sunlit Plus series cabinets are spliced with smart locks, which are easy to use, safe and firm, and can effectively avoid misoperation during installation.

Various installation options

Left: Lifting
Right: Floor Stand Mount

Specifications

Sunlit Plus Series

RU55-1P9VD

RU55-2P6VD

RU55-2P9VD

RU55-3P9VD

RO55-2P9VD

RO55-3P9VD

RO55-4P8VD

Model
Pixel Pitch(mm)
Resolution
Unit Size (W x H x D mm)
Module Size (W × Hmm)
Panel Technology
Brightness(nits)
Gray Scale(Bit)
Contrast Ratio
Colour Temperature(K)
Viewing Angle(H./V.)
Refresh Rate(Hz)
Lifetime(Hours)
Working Voltage
Power ConsumptionMax(W/m²)
Operating Temp(°C)
Humidity Range(%RH)
Weight(kg)

RU55-1P9VB
P1.953(indoor)
256*256
500 x 500 x 88/500 x 1000 x 88
250 x 250
SMD
600 ~ 800
14
5000:1
3200 ～ 12000(adjustable)
140°/120°
3840
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%RH
8/13

RU55-2P6VD
P2.604(indoor)
192*192
500 x 500 x 88/500 x 1000 x 88
250 x 250
SMD
600 ~ 800
14
5000:1
3200 ～ 12000(adjustable)
140°/120°
3840
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%
8 / 13

RU55-2P9VD
P2.97(indoor)
168*168
500 x 500 x 88/500 x 1000 x 88
250 x 250
SMD
600 ~ 800
14
5000:1
3200 ～ 12000(adjustable)
140°/120°
3840
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%
8 / 13

RU55-3P9VD
P3.91(indoor)
128*128
500 x 500 x 88/500 x 1000 x 88
250 x 250
SMD
600 ~ 800
14
5000:1
3200 ～ 12000(adjustable)
140°/120°
3840
≥100000
AC:100V~220V,50/60Hz
≤650
-10~+50
10%~80%
8 / 13

RO55-2P9VD
P2.97(outdoor）
168*168
500 x 500 x 88/500 x 1000 x 88
250 x 250
SMD
4500
14
5000:1
3200 ～ 12000(adjustable)
140°/120°
3840
≥100000
AC:100V~220V,50/60Hz
≤800
-20 ~ +50
10 ~ 90
8 / 13

RO55-3P9VD
P3.91(outdoor)
168*168
500 x 500 x 88/500 x 1000 x 88
128*128
SMD
4500
14
5000:1
3200 ～ 12000(adjustable)
140°/120°
3840
≥100000
AC:100V~220V,50/60Hz
≤800
-20 ~ +50
10 ~ 90
8 / 13

RO55-4P8VD
P4.81(outdoor)
104*104
500 x 500 x 88/500 x 1000 x 88
128*128
SMD
4500
14
5000:1
3200 ～ 12000(adjustable)
140°/120°
3840
≥100000
AC:100V~220V,50/60Hz
≤800
-20 ~ +50
10 ~ 90
8 / 13
