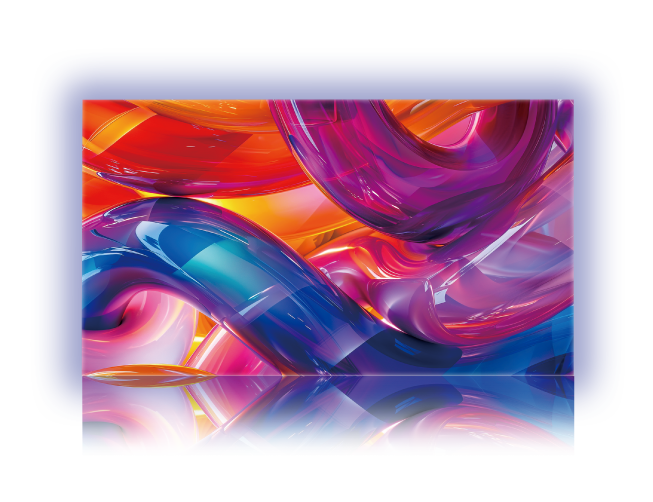

55”Discovery-Ultra Series MIP Panel
Beyond Limits Panel Beyond Expectations

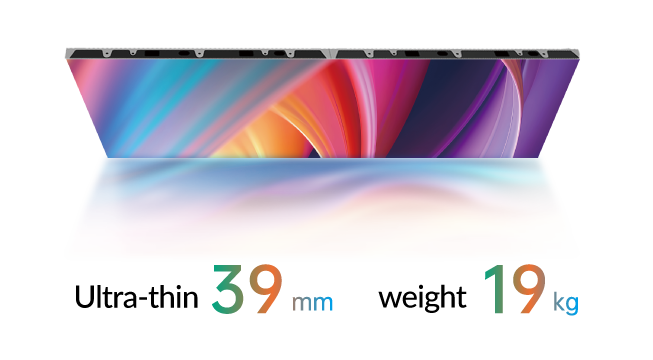

Ultra-large Size, Slim Design
1212x681.75mm Cabinet size, with 39mm thickness and 19kg in weight.
MIP Technology Leads the Display Revolution

Ultimate color accuracy, flawlessly reproducing every authentic detail.

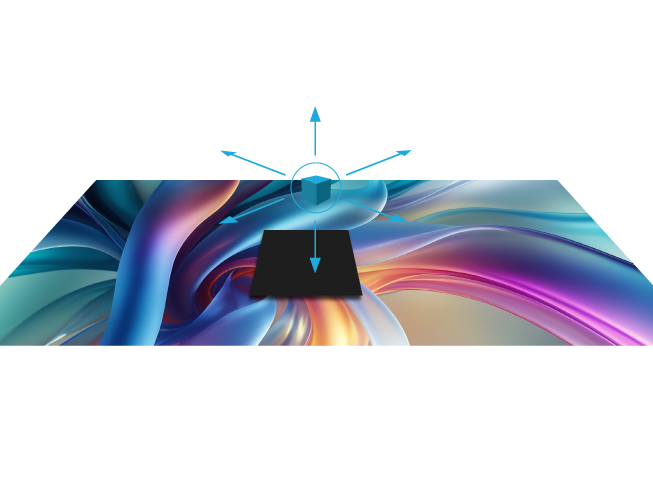

Three-axis Six-way Adjustment
The customized connectors combined with the magnets on the cabinet allow the module to adjust in three axes and six directions, ensuring a perfectly flat screen surface.
22bit+High Grayscale Resulting in More Natural Detail Transition
Adopting integrated row-column driver IC to ensure high-quality display at low brightness and higher grayscale up to 22bit+ in high grayscale mode.
Dark as Ink, Smooth as a Mirror
The module adopts a matte black finish treatment,ensuring a uniform and consistent ink-like colour.

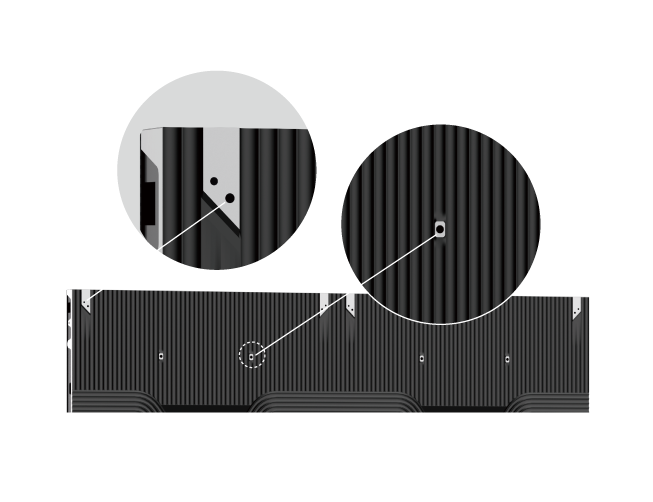

Bi-directional Front and Rear Mounting for Easy Installation
The cabinet supports front and rear bi-directional installation, suitable for various installation environments.

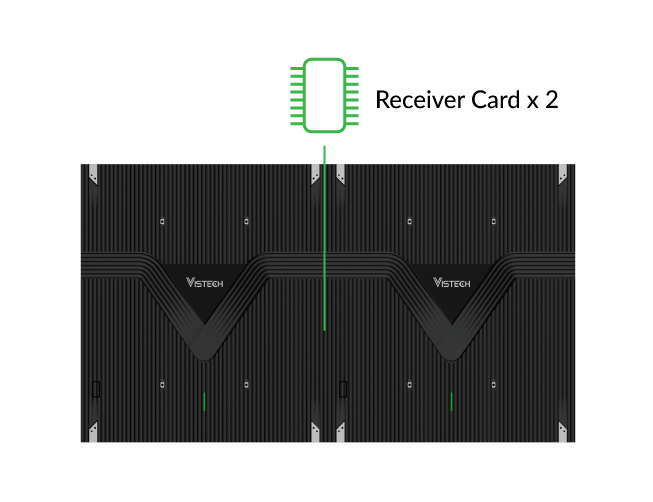

Receiver Card Backup, Multiple Protection
The receiver card supports dual backup. If the signal receiver fails, it will automatically switch to the backup receiver card to ensure normal display and provide protection for continuous display.
16:9 Golden Display Ratio
Arbitrary splicing FHD, UHD, FUHD large screen.

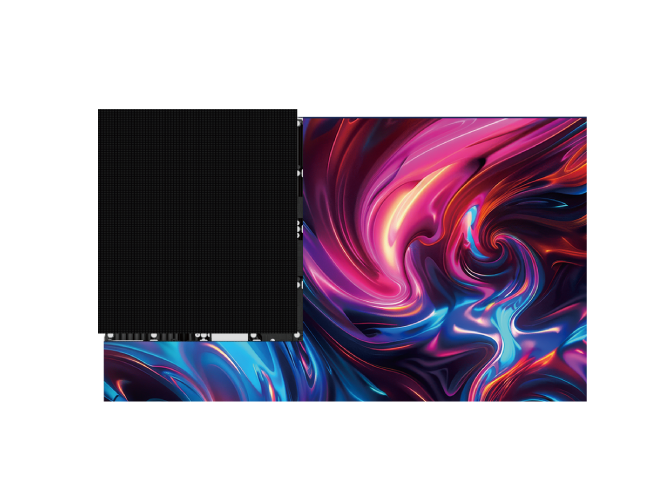

Full Front Maintenance Design
No need to reserve maintenance channel, saving installation space, more convenient installation and maintenance.
Specifications

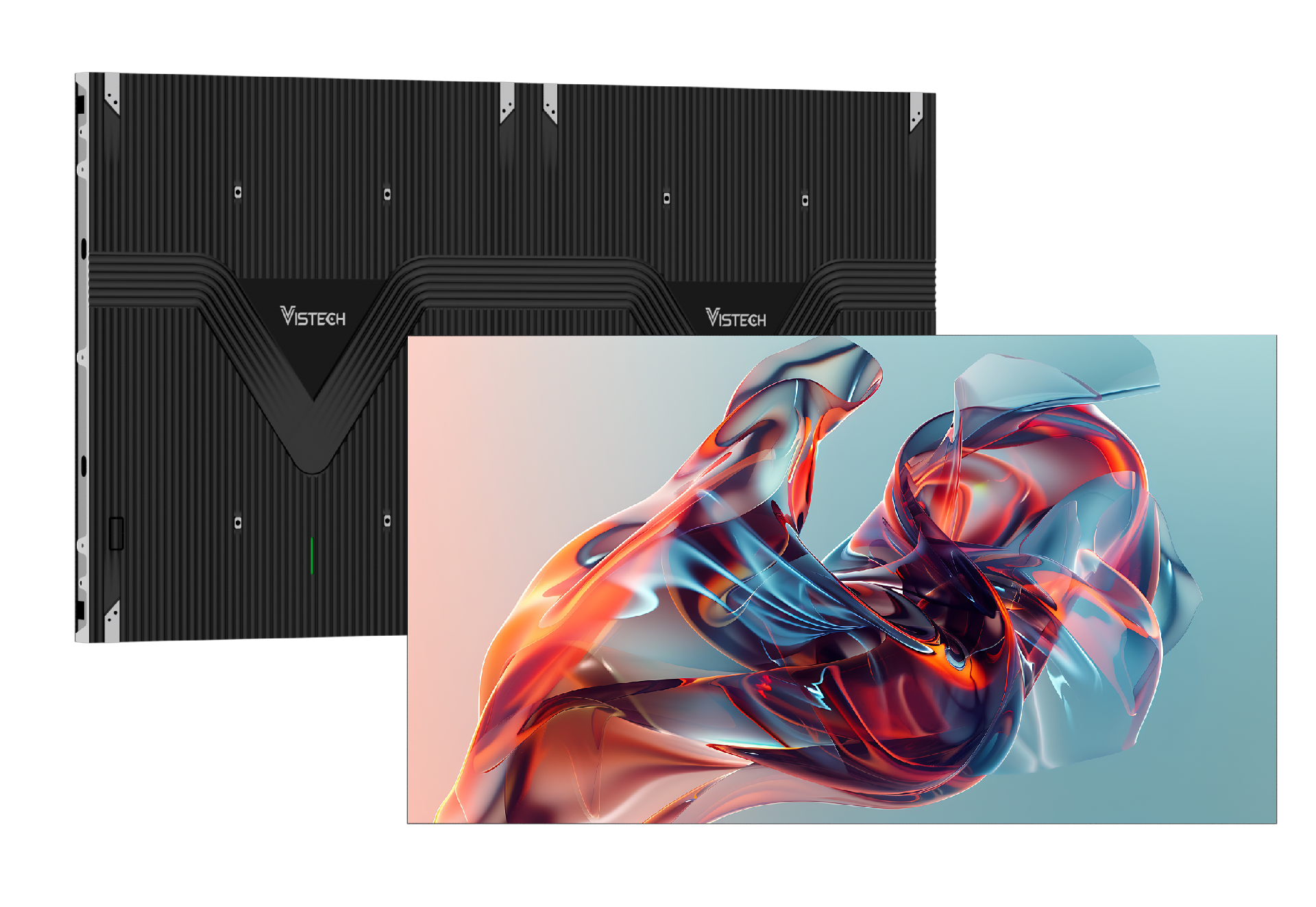

55”Discovery-Ultra Series MIP Panel
MC6-09VA
  • Model
  • Pixel Pitch(mm)
  • Resolution
  • Panel Technology
  • Unit Size(W x H x Dmm)
  • Surface Treatment
  • Brightness(nits)
  • Contrast Ratio
  • Color Temperature(K)
  • Frame Rate(Hz)
  • Refresh Rate(Hz)
  • Working Voltage
  • Power Consumption Max(W/m2)
  • Power Consumption AVG(W/m2)
  • Lifetime(Hours)
  • Operating Temp(°C)
  • Humidity Range(%RH)
  • Unit Weight(kg)
  • MC6-09VA
  • P0.9469
  • 1280*720
  • MIP
  • 1212 x681.75 x39
  • Matte black fnish
  • 900
  • Up to 1, 000, 000:1
  • 7500(Adjustable)
  • 60
  • 3840
  • AC:100~240V,50/60Hz
  • 320
  • 110
  • 100000
  • -10~+50
  • 10-80(Non-condensing)
  • 19
