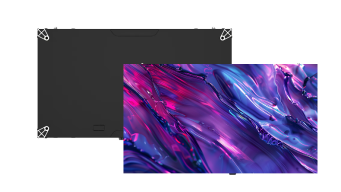

Cube Series Indoor LED Display

Powerful compatibility

One chassis with same internal compositionfor all available pitches.Superb stock preparation efficiency.

Various sizes, any combination

With 500x1000mm and 500x250mm two cabinet sizes, the 500x250mm cabinet can be cut and spliced into three new cabinet sizes to meet the demand for more shaped splicing large screens.

Easy assembly

Hanging 13m high without additional bracket

The chassis has been tested to an 1300kg breaking point.

Creative installation

Easy maintenance

Full front maintenance design.

Multiple applications

Specifications

Cube Series

U5A-15VA

U5A-18VA

U5A-25VA

U5A-26VA

U5A-29VA

U5A-39VA

Model
Pixel Pitch(mm)
LED Confguration
Pixel Density(pixels/m²)
Brightness(cd/m²)
Module Size(W x H mm)
Module Resolution (dots)
Panel Size(W x H x D mm)
Panel Weight(Kg/m²)
Power Consumption(Max/Avg) W/m²
Refresh Rate(Hz)
Viewing angle(H./V.)
Contrast
Gray Scale(bits)

U5A-15VA
1.5625
SMD1212
409600
600
250x250
160x160
500x1000x44, 500x250x44
19.5
600/200
3840
140°/140°
5000:1
≤14

U5A-18VA
1.8939
SMD1515
278784
600~800
250x250
132x132
500x1000x44, 500x250x44
19.5
600/200
3840
140°/140°
5000:1
≤14

U5A-25VA
2.5
SMD2020
160000
800~1,000
250x250
100x100
500x1000x44, 500x250x44
19.5
600/200
3840
140°/140°
4000:1
≤14

U5A-26VA
2.604
SMD1515/2020
147456
800~1,000
250x250
96x96
500x1000x44, 500x250x44
19.5
600/200
3840
140°/140°
4000:1
≤14

U5A-29VA
2.97
SMD2020
112896
800~1,000
250x250
84x84
500x1000x44, 500x250x44
19.5
600/200
3840
140°/140°
4000:1
≤14

U5A-39VA
3.91
SMD2020
65536
800~1,000
64x64
84x84
500x1000x44, 500x250x44
19.5
600/200
3840
140°/140°
4000:1
≤14

Related Downloads

Cube Series

0.9MB

2023-04-17
