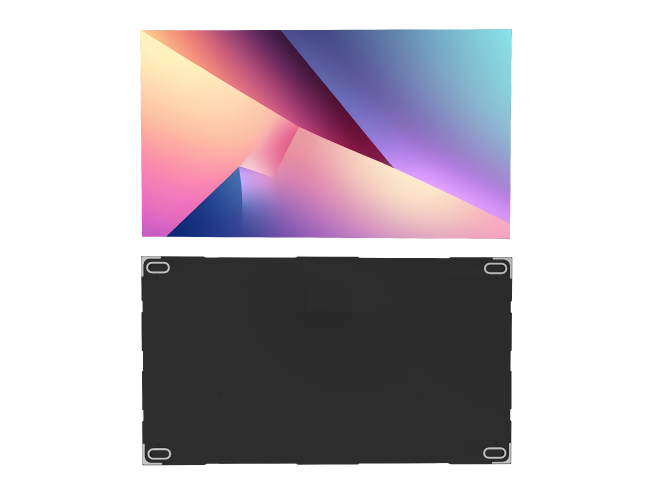

Sleek Series Ultra-Slim MicroLED

Sleek Series Ultra-Slim MicroLED
600 x 337.5 x 20mm

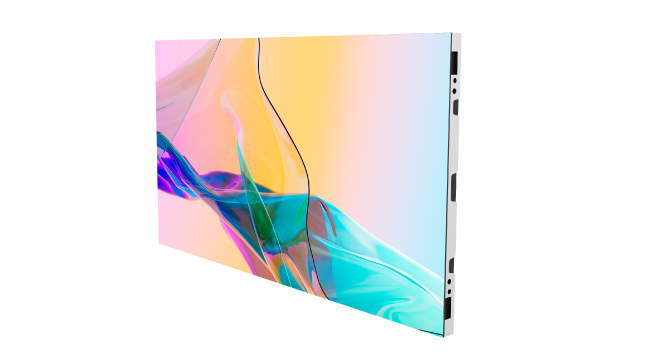

Minimalist & Ultra-Slim Design

20mm Ultra-Slim

3.6kg Ultra-Light

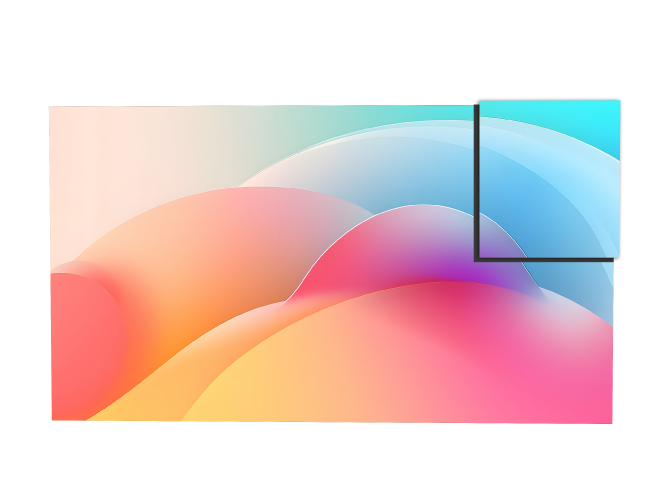

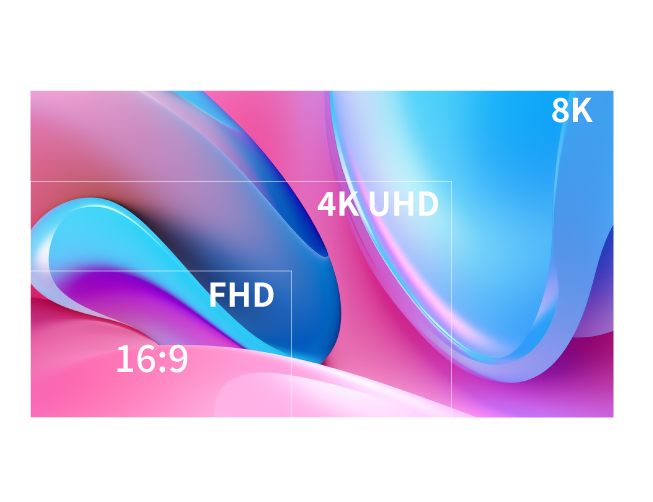

16:9 Standard Ratio

Standard 16:9 ratio for flexible FHD, 4K UHD, and 8K display.

Full Flip-Chip COB for Stunning Visuals

Wide color gamut, high contrast, and excellent black-level uniformity for superior image quality.

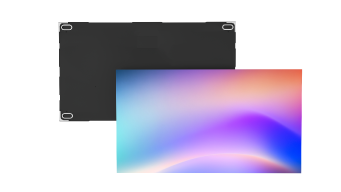

Full Front Maintenance, Easier Service

Full front maintenance for flexible installation and easy servicing.

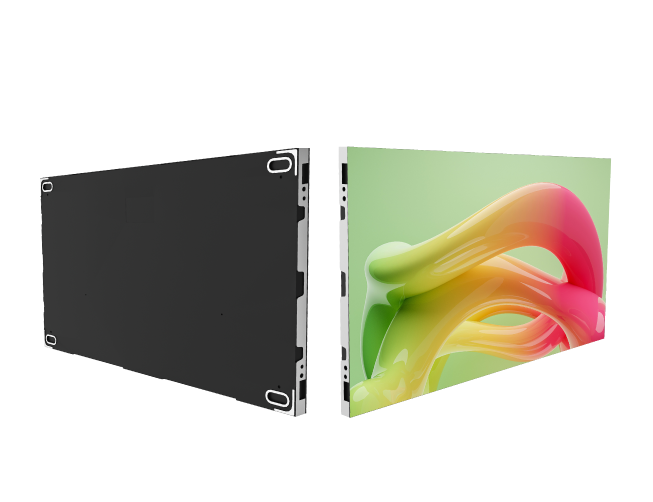

Hard Connection Design, Stable & Durable

The modules feature a hard connection to the cabinet for enhanced stability.

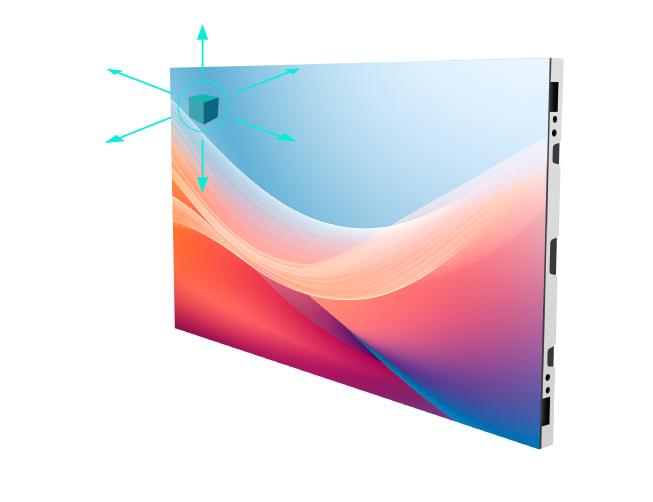

3-Axis, 6-Direction Adjustment for Seamless Display

The modules support 3-axis, 6-direction adjustment, delivering superior flatness for smooth, seamless displays.

Specifications

Sleek Series Ultra-Slim MicroLED

C63-09VSA（5）

C63-12VSA（5）

C63-15VSA（5）

Model
Pixel Pitch(mm)
Panel Dimensions(WxHxD)(mm)
Module Size(WxH)(mm)
Resolution
Panel Technology
Brightness(nits)
Contrast Ratio
Color Temperature(K)
Viewing Angle(H./V.)
Frame Frequency(Hz)
Refresh Rate(Hz)
Working Voltage
Peak Power Consumption(W/m²)
Average Power Consumption(W/m²)
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)
Cabinet Weight (kg)

C63-09VSA（5）
P0.9375
600 x 337.5 x 20
150 x 168.75
640*360
COB
600
20,000：1
3000-10000(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
≤350
≤120
100000
-10 ~ 50
10 ~ 80
3.6

C63-12VSA（5）
P1.25
600 x 337.5 x 20
150 x 168.75
480*270
COB
600
20,000：1
3000-10000(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
≤285
≤95
100000
-10 ~ 50
10 ~ 80
3.6

C63-15VSA（5）
P1.5625
600 x 337.5 x 20
150 x 168.75
384*216
COB
600
20,000：1
3000-10000(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
≤300
≤100
100000
-10 ~ 50
10 ~ 80
3.6
