ECO Series Micro LED

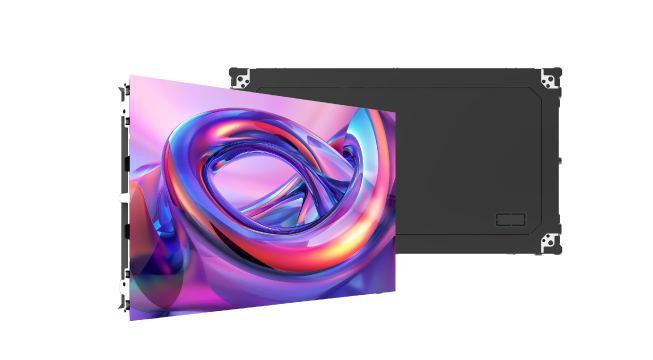

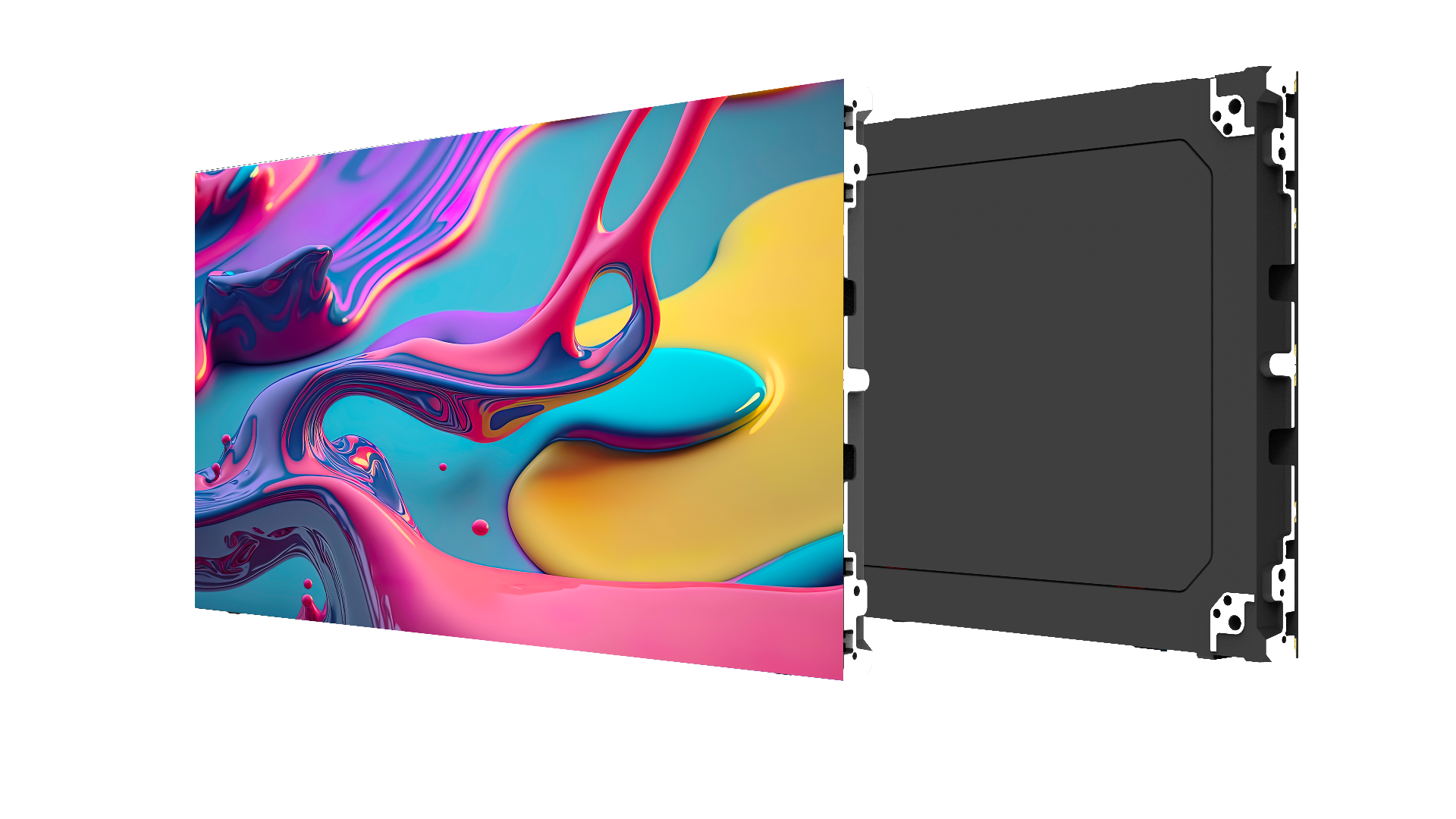

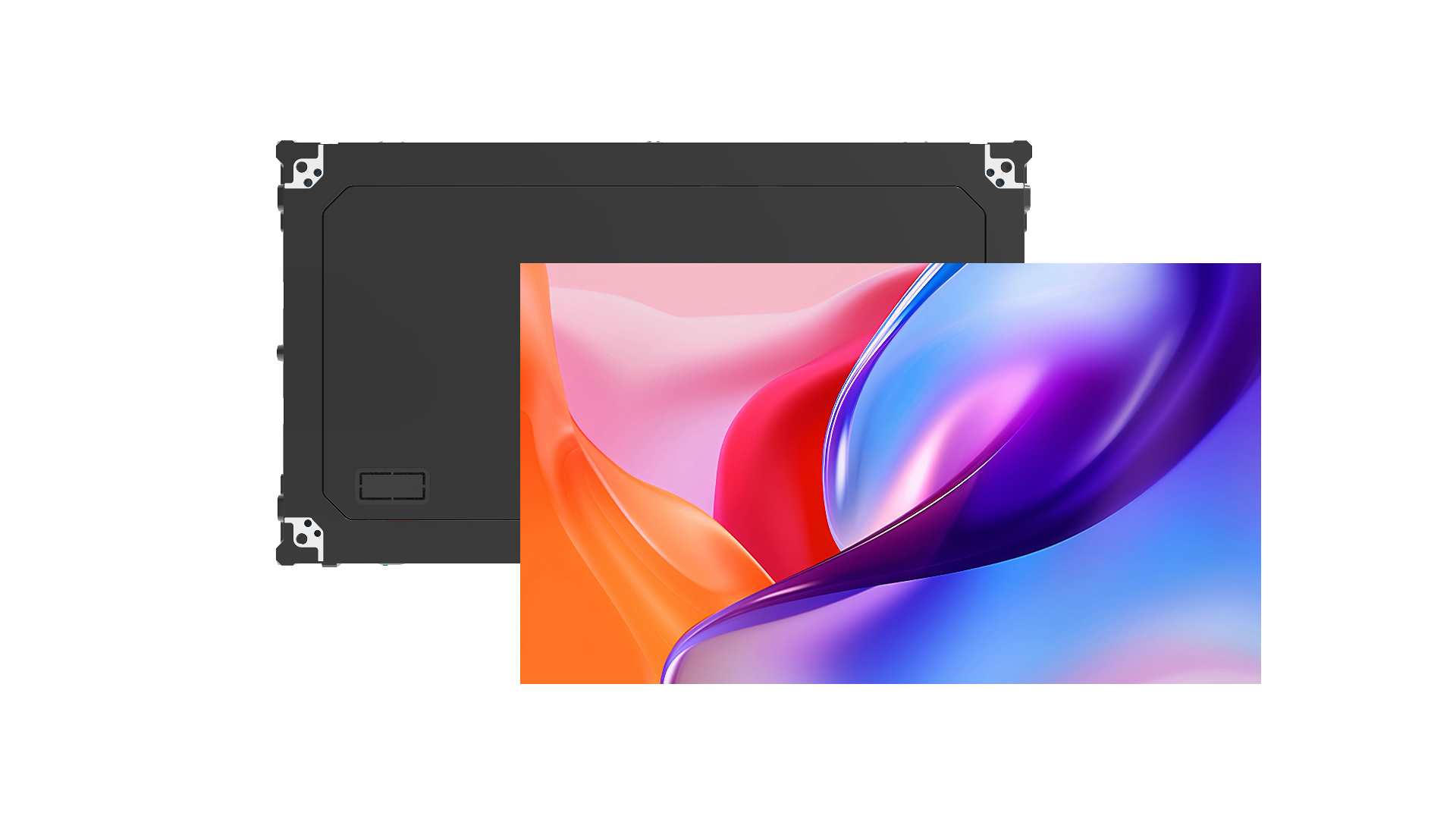

Minimalist Cabinet with Large Modules, Ultra-Light & Ultra-Thin

Sleek minimalist design with a cabinet thickness of just 32.9 mm and a weight of only 3.6 kg.

Large module design reduces seams and improves flatness, delivering superior overall display performance.

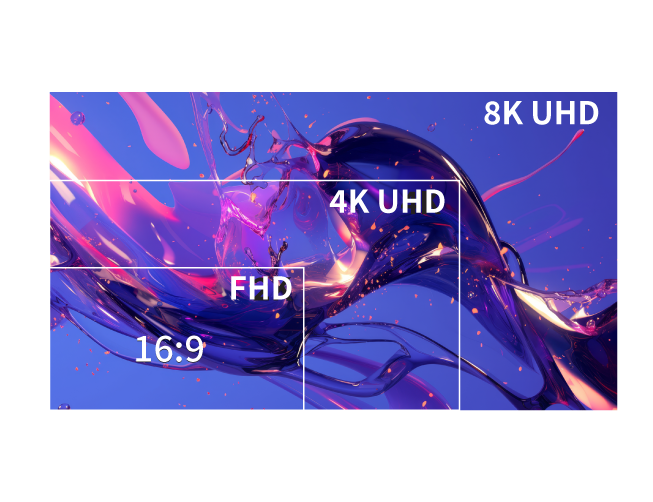

Standard 16:9 Aspect Ratio

Easily enables seamless splicing for FHD/4K/8K UHD large displays.

Full Flip-Chip COB Technology, Cinema-Grade Visuals

Wide color gamut, high contrast ratio, and uniform inky blacks.

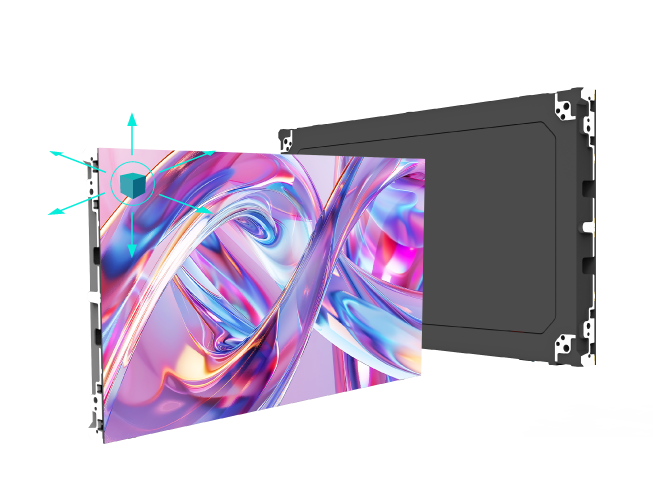

Hard Connection Design & 3-Axis, 6-Direction Adjustment

The hard connection design between the modules and the cabinet provides greater stability.

The modules support 3-axis, 6-direction adjustment, ensuring exceptional flatness.

Front Maintenance & 3-in-1 Design, Easier Installation and Maintenance

Supports full front maintenance.

3-in-1 design integrating power supply, HUB, and receiver card for enhanced stability and durability.

Specifications

ECO Series Micro LED

C63-09VE

C63-12VE

C63-12VEA

C63-15VEA

C63-18VEA

Model
Pixel Pitch(mm)
Panel Dimensions(WxHxD)(mm)
Module Size(WxH)(mm)
Resolution
Panel Technology
Brightness(nits)
Contrast Ratio
Color Temperature(K)
Viewing Angle(H./V.)
Frame Frequency(Hz)
Refresh Rate(Hz)
Working Voltage
Peak Power Consumption(W/m²)
Average Power Consumption(W/m²)
Lifetime(Hours)
Operating Temp(°C)
Humidity Range(%RH)
Cabinet Weight (kg)

C63-09VE
P0.9375
600 x 337.5 x 32.9
300 x 168.75
640*360
COB
600
1,000,000：1
7500(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
340
120
100000
-10 ~ +50
10 ~ 80
3.6

C63-12VE
P1.25
600 x 337.5 x 32.9
300 x 168.75
480*270
COB
600
1,000,000：1
7500(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
300
100
100000
-10 ~ +50
10 ~ 80
3.6

C63-12VEA
P1.25
600 x 337.5 x 32.9
300 x 168.75
480*270
COB
600
1,000,000：1
7500(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
340
120
100000
-10 ~ +50
10 ~ 80
3.6

C63-15VEA
P1.5625
600 x 337.5 x 32.9
300 x 168.75
384*216
COB
600
1,000,000：1
7500(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
340
120
100000
-10 ~ +50
10 ~ 80
3.6

C63-18VEA
P1.875
600 x 337.5 x 32.9
300 x 168.75
320*180
COB
600
1,000,000：1
7500(Adjustable)
170°/170°
60
3840
AC：100~240V，50/60Hz
340
120
100000
-10 ~ +50
10 ~ 80
3.6

Related Downloads

ECO Series Micro LED

9.7MB

2025-08-06
